Rice Transplanter

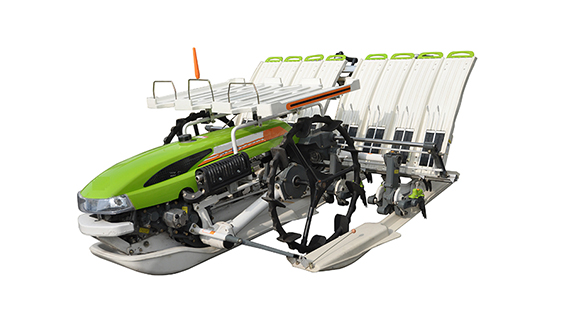

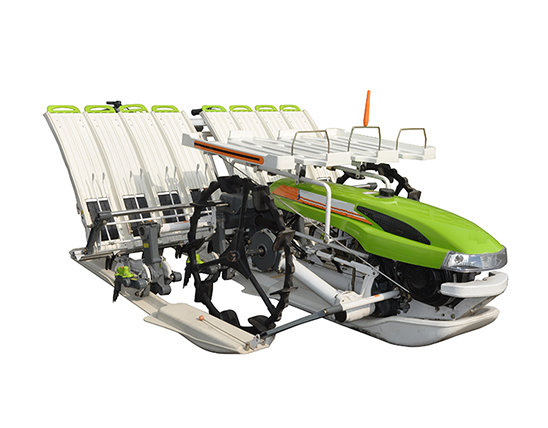

The Chalion brand walking rice transplanter is mainly for the rice planting, it suitable for small paddy field, it exported to West Africa, South-east Asian countries, for example, Nigeria, Ghana, Indonesia, Malaysia, Philippines and so on.
Products Description
The Chalion brand walking rice transplanter is mainly for the rice planting, it suitable for small paddy field, it exported to West Africa, South-east Asian countries, for example, Nigeria, Ghana, Indonesia, Malaysia, Philippines and so on.
1）This is the star product of our company. Besides being used in China, it has been exported to more than 10 countries, such as India, Indonesia, Philippines, etc.

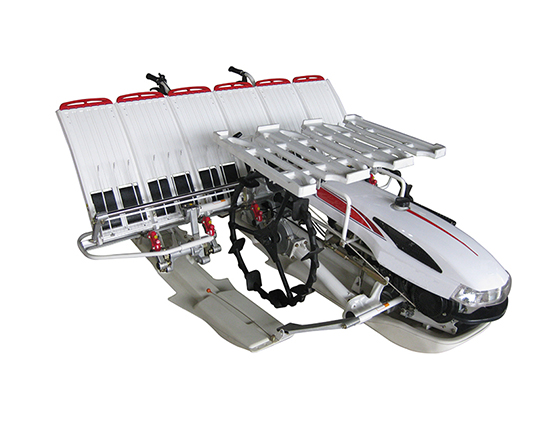

2）Farm rice transplanter includes 4-row transplanter and 6-Row transplanter.
3）Model AP40 hand-held transplanter, the overall size of the machine 2180 x 1260 x 950 mm, the weight is 150 Kg;
4）The row spacing is 300mm and 250mm optional, suitable for the agronomic requirements of different regions, and the working efficiency of the whole machine is 2-3 mu/hour.
5）It can be applied to blanket seedlings and potted blanket seedlings.
6）We can provide customized development to meet customer agronomic requirements.
Products Use
The rice transplanter is a planting machine for planting rice seedlings in the paddy field. The rice transplanter can provide seedlings, split seedlings, and transplant seedlings in one go. The requirements for the length, short, large and small seedlings are not strict, and the plant spacing and row spacing are in accordance with the hybrid rice planting standards. The design can also be adjusted at any time as needed.
Products Advantage
Main features of the product:
Nooil leakage, using imported seals, the whole machine has been strictly sealed and tested!
Donot float seedlings, using proprietary technology, rice paws in a straight line! Do not float, high upright!
Yamaha engine, strong power!
High reliability, 2 years and 3 packages of products!
Super corrosion resistance, fasteners, sheet metal parts after 72 hours salt spray test!
High power, low emissions, low noise.
Reliable power transmission: adopts bevel gear transmission mode to transmit power, high efficiency and reliability.
Superior performance: float plate type hydraulic lifting mechanism and optional automatic balance system, consistent in the depth of transplanting.
Good field passability: Adopt large-diameter wheels, adaptability of wet fields, rotten fields, and good field passability.
High operating comfort: Using ergonomic design, according to the operator's height, adjust the height of the handle to achieve harmony between man and machine.
Integration of agronomic requirements: Achieving a wide range of intermediate behaviors, narrow rows on both sides, increasing basic seedlings, and increasing rice yield.
Products Parameters
| Main performance and technical specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Unite | Secification | Model | Unite | Secification | |||||||||
| Product type:AP40(250/300mm) | Walking part | Wheel | -- | Iron wheel | ||||||||||
| Dimensions | Length | mm | 2180 | Dia.(wheel) | mm | 660 | ||||||||
| Width | mm | 1260/1480 | Width(wheel) | mm | 61/90 | |||||||||
| Height | mm | 950 | Transmission | steps | Forward(2steps)/back(1 step) | |||||||||
| Weight | kg | 150 | Walking speed | m/s | 0.75-1.51 | |||||||||
| Transplanting organization form | Crank rocker type | Transplanting part | Speed | m/s | 0.36-0.73 | |||||||||
| Crank radius | mm | 35 | Line number | line | 4 | |||||||||
| Transplanting frequency | Times/min | ≤270 | Row pitch | mm | 250/300 | |||||||||
| engine | Model | -- | Four-stroke single-cylinder gasoline engine | Planting distance | mm | 126/139/169/174/192/233(6 steps can be adjusted ) | ||||||||
| Max/Rated power | Kw(ps) | 4(5.5)/3.3(4.4) | Planting depth | mm | 10-35(6 steps can be adjusted) | |||||||||
| Mas/Rated running | r/min | 4000/3600 | The thickness of taking seedling | mm | 10-18(11 steps can be adjusted) | |||||||||
| Engine fuel | -- | 93# gasoline | Transplanting times | steps:16/18/20/ teps:20/22/24 | ||||||||||
| Starting method | -- | Anchor rope recoil type | Spare seedling boxes | Plate | 2 | |||||||||
| Oil tank | L | 3.5 | Productivity | Hectare/hour | 0.13-0.18 | |||||||||
| Main performance and technical specifications | |||||
|---|---|---|---|---|---|
| Machine dimension | Total length（mm） | 3380 | |||
| Total width（mm） | 2170 | ||||
| Total height（mm） | 2110 | ||||
| Minimum height from ground | 360mm | ||||
| Machine weight | 750kg | ||||
| Engine | Model | Kubota D782-ET09 | |||
| Brand | diesel engine | ||||
| Type | Three cylinder, V-shaped, water-cooled, four-stroke | ||||
| Bore (mm)* stroke (mm) | 80*79 | ||||
| Displacement(L) | 0.778 | ||||
| Fuel | Diesel | ||||
| Rated power / speed | 14.4（19.6）/3200 | ||||
| Intake method | naturally inhale | ||||
| Steering modes | Hydraulic Power Steering | ||||
| Fuel Tank Capacity | 20L | ||||
| Walking part | Steering method | Hydraulic power assisted steering | |||
| Wheel | Type | Front wheel | Solid tyre | ||
| Rear wheel | Rubber lug wheel | ||||
| OD×rim width | Front wheel | 650mm×78mm | |||
| OD×rim width | Rear wheel | 900mm×50mm | |||
| Speed change method | Hydraulic stepless transmission (HST) | ||||
| Transmission | [Forward(2steps,including transplanting 1 step)/ back(1 step)]* infinitely variable speed | ||||
| Seedling transplanting part | Line numbers of transplanting | 6 lines | |||
| Row spacing | 30cm | ||||
| Plant spacing | 240 / 210 / 180 / 170 / 160 / 140 / 120 / 110 (mm) | ||||
| Plant depth(mm) | 2-44 | ||||
| The thickness of taking seeding(mm) | 8-18 | ||||
| Transplanting times (times/min) | 16/18/22 | ||||
| Spare seedling boxes(Plate) | 6 | ||||
| Productivity (hectare/hr) | 0.2-0.5 | ||||
-
