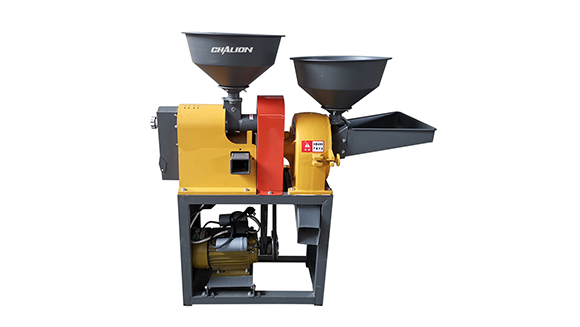

Rice Milling Machine
The Rice Mill Machine can shell rice and grind bean and corn. whiteness the rice and separate the whole rice from the broken one. Shelling rate is over 90%.
Blade-free rice mill machine, equipped with stainless steel screen, with partial metal housing, the disposable wear-resistant reaches to 8,000kg or more, keeping whole rice grain; the supporting power is 2.2kW, with capacity of 120-180kg/h, rice sieve mesh size is 1.2mm, the hopper can be loaded with 15-20kg of rice, which is applicable to rice, millet, corn, soybeans, etc., can be equipped with 170F, 168F gasoline engine or air-cooled diesel engine.
Products Description
The Rice Mill Machine can shell rice and grind bean and corn. whiteness the rice and separate the whole rice from the broken one. Shelling rate is over 90%.
Blade-free rice mill machine, equipped with stainless steel screen, with partial metal housing, the disposable wear-resistant reaches to 8,000kg or more, keeping whole rice grain; the supporting power is 2.2kW, with capacity of 120-180kg/h, rice sieve mesh size is 1.2mm, the hopper can be loaded with 15-20kg of rice, which is applicable to rice, millet, corn, soybeans, etc., can be equipped with 170F, 168F gasoline engine or air-cooled diesel engine.
ProductsFeatures
Easy to operate. Start the machine, regulate the pressure handle, rice will come out without chaff. Chaff can be collected in bag.
Convenient to maintain. The structure of this product is compact. Just open the upper cover, the inner of the machine can be checked and cleaned.
Safe job. It can normally work in full loading condition, no need to worry at overloading or long working time.
Products Use
The rice milling machine completes mechanical peeling, which saves labor and improves work efficiency.
Rice, millet (millet) and corn, wheat, soybean, mung bean, lentil, coffee and other granular materials, whose length does not exceed 20mm, the material whose diameter does not exceed 10mm can be unpacked Peeling,
Products Advantage
Reliable power transmission: adopts bevel gear transmission mode to transmit power, high efficiency and reliability.
Applicable scope of rice milling machine
Rice, millet (millet) and corn, wheat, soybean, mung bean, lentil, coffee and other granular materials, whose length does not exceed 20mm, the material whose diameter does not exceed 10mm can be unpacked Peeling,
The type, material and purpose of the rice milling machine
1. No knife type (model 6N40X/6NF4): The gray cast iron is used as the fuselage, the material standard is: HT100-HT200, the spindle (including the roller) adopts 440ASTM (American) material, the hardness after quenching and tempering reaches 35-55HRC, With tensile strength, extending the useful life, and the working part of the ribs using 35CrMo alloy steel plate, enhanced wear resistance, 304 stainless steel sieve used to achieve food grade, to protect personal safety.
2. Screen type (Model 6N80A):Wearing parts name, rice sieve, roller, layering; rice sieve, beading for high-frequency quenching or stainless steel material, the rest of the material and adjust the knife type, the advantages of the model; no adjustment Intermittent, intermittent by the factory has been set up, easy to operate, simple maintenance, suitable for different groups of people.
3. Adjust the blade type (Model: 6N80):Using gray cast iron as the body, the material standard is: HT100-HT200, sheet metal material is Q235, wearing parts name: rice sieve, roller, rice knife, including rice sieve For high frequency quenching or stainless steel, roller and knife are wear-resistant chilled cast iron or gray cast iron, this model can be applied to the above materials, can also be applied to large materials beyond this range; surface coating adopts Spraying process to achieve long-term non-discoloration and smooth light.
Products Parameters
| rice milling machine | |
|---|---|
| Model | 6NF4E-9FC21 |
| Dimension(LxWxH)mm | 640x550x330 |
| Packing size(LxWxH)mm | 950x420x1020 |
| Rated power | 2.2kW |
| net weight | 52kg (without electric motor) |
| Productivity rice mill | 160-180kg/h |
| Structure | Blade-free rice mill machine |
| Stainless steel screen | |
| Rice sieve mesh size | 1.2mm |
| Hopper Capacity | 15-20kg |
| Applicable | Rice, Millet, Corn, Soybeans |
| Tooth-claw type grinder, sieve width is 100mm, speed of main shaft is 4,500-5,500r/min, with capacity of 160-200kg/h, the supporting power is 2.2kW, applicable materials: Granules, peppers, etc., the particle size is 10-80 mesh | |
-

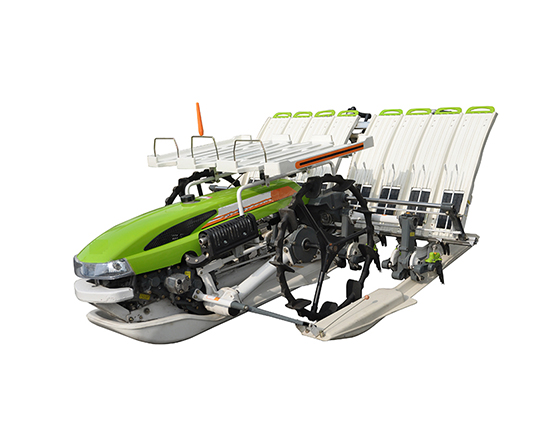

Rice Transplanter
The Chalion brand walking rice transplanter is mainly for the rice planting, it suitable for small paddy field, it exported to West Africa, South-east Asian countries, for example, Nigeria, Ghana, Indonesia, Malaysia, Philippines and so on.
Learn More -

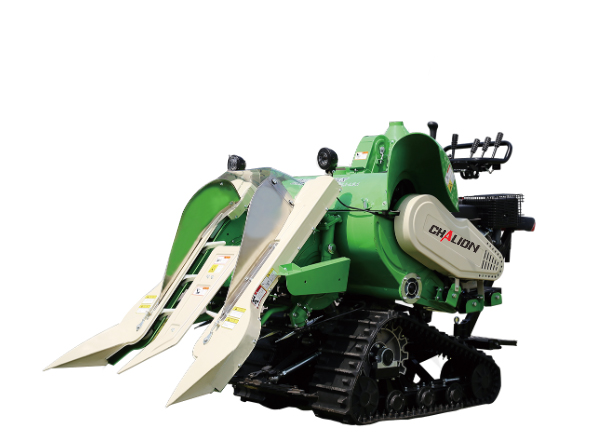

Chalion 4LZ-0.6 Mini Rice Harvester
Chalion 4LZ-0.6 mini rice harvester is a full-feed self-propelled crawler-type small combine harvester, which can be used for rice and wheat harvesting in hilly areas. This machine uses a one-lever control for easy operation. High operating efficiency, using gasoline power, energy saving, and environmental protection.
Learn More -

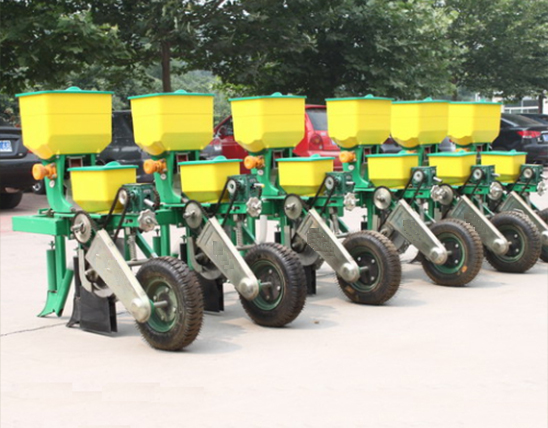

Chalion 2BYCF Series Corn Seeder
Chalion 2BYCF series corn seeder, Sowing by weight, no damage to seeds. High precise seeds clearance, evenly sowing stable, seeds saving, and less thin out seeding. Mainly for sowing corn, can also sowing bean. cotton seeds, cotton seeds, peanut, and sunflower seeds, It has multi-functions.
Learn More -

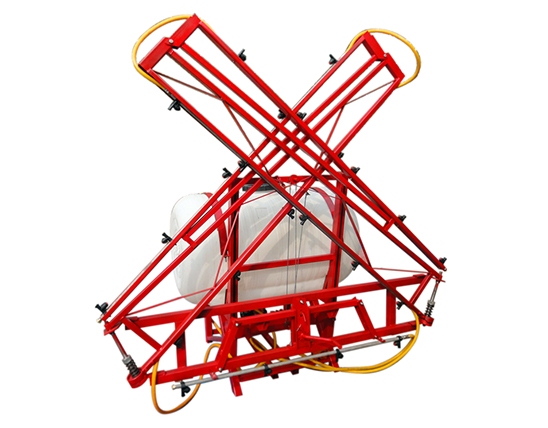

Chalion 3W Series Boom Sprayer
Chalion 3W series boom sprayer hung onto roller tractor, this 3W series suspended type and spray machine owns many advantages, such as flexible use, simplified operation and alike, so it is suitable for the extermination of disease and insect pest of crops, foliar nutrient and weedicide spray.
Learn More
