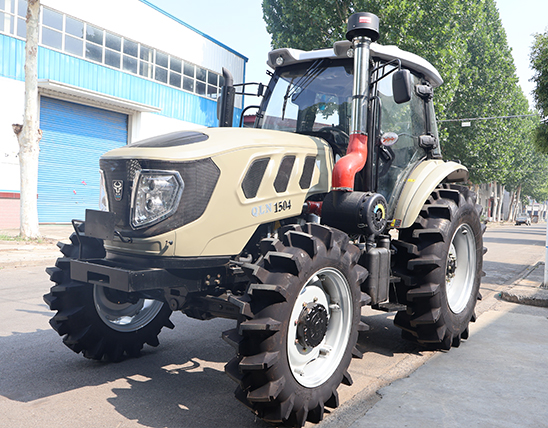

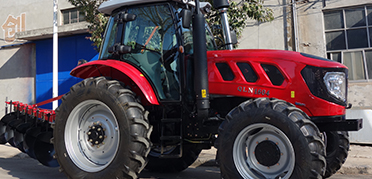

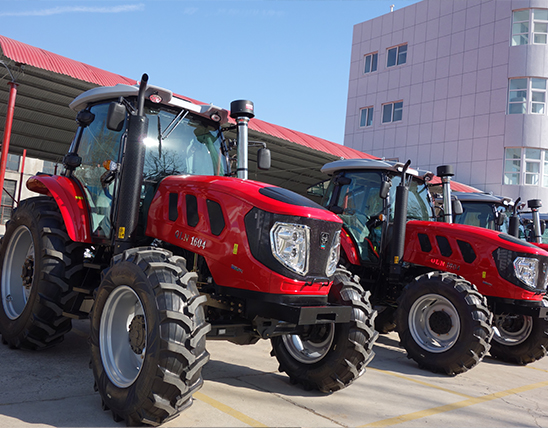

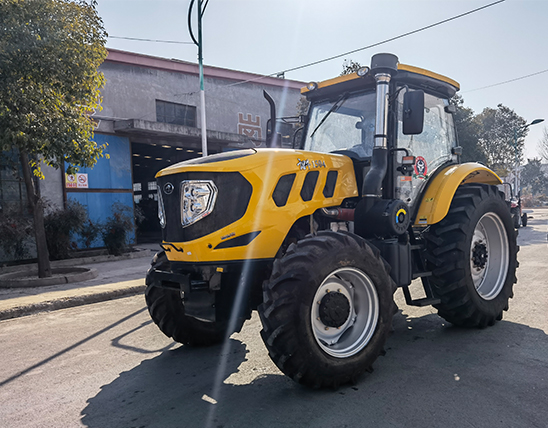

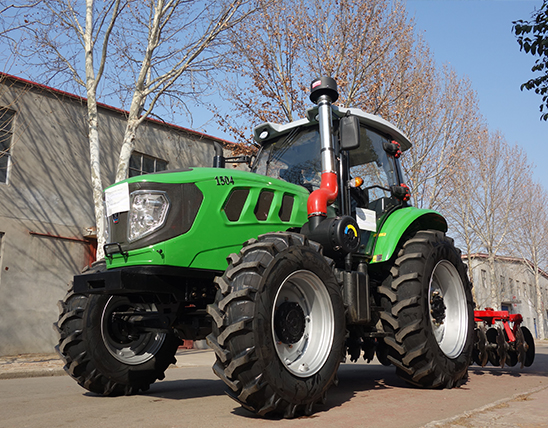

Chalion 150hp-180HP Wheeled Tractor
QP series tractor(QLN-1504 1604 1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Products Description
QP series tractors (QLN-1504 1604 1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Products Advantage
-
6-cylinder turbocharge engine with strong power, high fuel efficiency, and high torque output;
+ -
Hydraulic driving brake system and handle-manipulated stop braking system, high safety coefficient；
+ -
YTO brand independent-operation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -
The use of flat floors, hanging pedals, side manipulation, 16+8 shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution；
+ -
ZF(Germany) front axle with advanced structure, high carrying ability, high ground clearance, easy operation, and other advantages suitable for operation under various working conditions;
+ -
New-generation graceful and splendid streamline casing, meeting requirements for safety,dust-proof, noise reduction, and heat dissipation. Enclosed cab with heater, fan, air conditioner, and the sounding system is optional, which makes driving safer and more comfortable.
+
Products Parameters
| 180HP | |||
|---|---|---|---|
| Model | QLN-1804 | ||
| Engine | Rated Power(kw) | 132.4 | |
| Type | Direct-injection, water-cooled 6-cylinder diesel engine | ||
| Rotation Speed(r/min) | 2300 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 5050 | ||
| Overall Dimension(mm) | 5060*2345*2995 | ||
| Wheel tread for Front Wheel(mm) | 1954 | ||
| Wheel tread for Rear Wheel(mm) | 1850(Adjustable) | ||
| Wheelbase(mm) | 2543 | ||
| Minimum Ground Clearance(mm) | 395 | ||
| Gear Box | 16F+8R | ||
| Front Tire | 14.9-26 | ||
| Rear Tire | 18.4-38 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/1000 | |
| Max lifting Force at 610mm (KN) | 31.78 | ||
| Max Traction (KN) | 30 | ||
| Suspension Type | 3 points linkage, CAT.2, | ||
| 150HP | |||
|---|---|---|---|
| Model | QLN-1504 | ||
| Engine | Rated Power(kw) | 110.3 | |
| Type | Direct-injection, water-cooled 6-cylinder diesel engine | ||
| Rotation Speed(r/min) | 2300 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 5050 | ||
| Overall Dimension(mm) | 5060*2345*2995 | ||
| Wheel tread for Front Wheel(mm) | 1954 | ||
| Wheel tread for Rear Wheel(mm) | 1850(Adjustable) | ||
| Wheelbase(mm) | 2543 | ||
| Minimum Ground Clearance(mm) | 395 | ||
| Gear Box | 16F+8R | ||
| Front Tire | 14.9-26 | ||
| Rear Tire | 18.4-38 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/1000 | |
| Max lifting Force at 610mm (KN) | 28 | ||
| Max Traction (KN) | 35 | ||
| Suspension Type | 3 points linkage, CAT.2, | ||
| 160HP | |||
|---|---|---|---|
| Model | QLN-1604 | ||
| Engine | Rated Power(kw) | 117 | |
| Type | Direct-injection, water-cooled 6-cylinder diesel engine | ||
| Rotation Speed(r/min) | 2300 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 5050 | ||
| Overall Dimension(mm) | 5060*2345*2995 | ||
| Wheel tread for Front Wheel(mm) | 1954 | ||
| Wheel tread for Rear Wheel(mm) | 1850(Adjustable) | ||
| Wheelbase(mm) | 2543 | ||
| Minimum Ground Clearance(mm) | 395 | ||
| Gear Box | 16F+8R | ||
| Front Tire | 14.9-26 | ||
| Rear Tire | 18.4-38 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/1000 | |
| Max lifting Force at 610mm (KN) | 26 | ||
| Max Traction (KN) | 30 | ||
| Suspension Type | 3 points linkage, CAT.3, | ||
-
