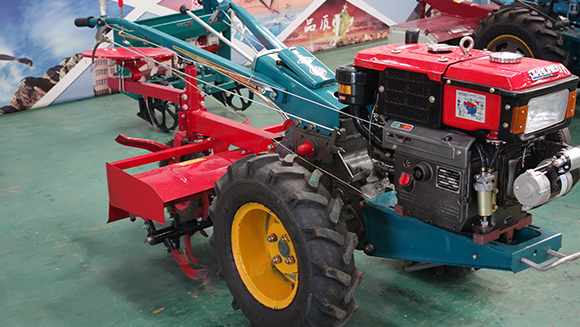

Chalion-151(15hp) Walking Tractor
QLN 15hp walking tractor is a precious working tool in agriculture and gardening. It is mainly used for soil tilling, and in combination with the series of available attachments, the walking tractor can be used to carry out a number of different works.
Products Description
QLN 15hp walking tractor is a precious working tool in agriculture and gardening. It is mainly used for soil tilling, and in combination with the series of available attachments, the walking tractor can be used to carry out a number of different works.
Products Advantage
The walking tractor is useful in any season!
6F+2R gear shift.
Stepless regulation of wheel tread:735-765mm
Multiple working land types: muddy, mountainous land, plain, terrace field
Match with all kinds of farm implements: plough, tiller, trailer, sprayer, seeder etc.
Reinforced frame, higher reliability.
Optional domestic famous engines such as Changchai and Changfa, with strong power and high reliability.
Tire model 6.00-12, bigger tire and paddy tire are available
Products Parameters
| 15HP | ||
|---|---|---|
| Model | QLN-151-1 | |
| Overall Dimensions(L×W×H)(mm) | 2420*1600*1230 | |
| Wheel Tread(mm) | 760~1410 | |
| Min. Ground Clearance(mm) | 260 | |
| Min. use weight(kg) | 405 | |
| Gear | F6+R2 | |
| Speed(km/ h) | 2.6、4.63、7.78 ; 9.65、17.14、 28.76 | |
| Forward | ||
| Reverse | 2.06; 7.6 | |
| Engine | Brand | Changzhou/ Changfa |
| Type | diesel Single cylinder; horizontal; 4 stroke; water cooled | |
| Rated Power(km/hp) | Changzhou/ Changfa | |
| Rated Speed(r/min) | 2200 | |
| Bore × Stroke (mm) | 100×115 | |
| Specific Fuel Consumption(g/kw*h) | ≤269.6 | |
| Tyre | 6.00-14 | |
-
