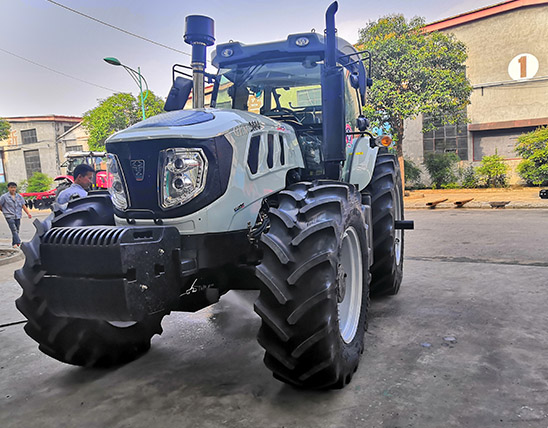

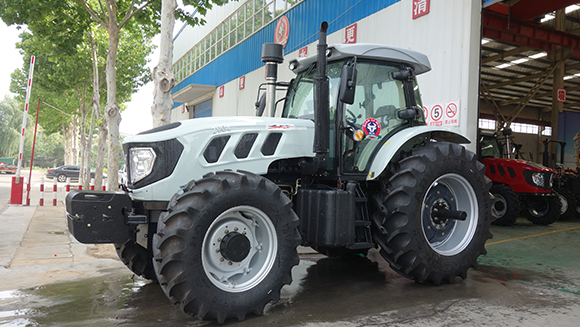

Chalion 200HP/147KW Wheeled Tractor
This QP series 200HP farm tractor uses YTO/WEICHAI engine and F16+R8 gear, large chassis, compact structure, strong power, and easy operation, bringing you efficient agricultural work.
Products Description
This QP series 200HP farm tractor uses YTO engine and F16+R8 gear, large chassis, compact structure, strong power and easy operation, bringing you efficient agricultural work.
Products Advantage
-
Weichai 6 cylinders diesel engine with with turbocharger and intercooling system,reliable quality with high torgue output.
+ -
Gearbox 16F+16R with synchronizer shift,multiple speed options to meet various farm activities, and can change lever shift more smoothly and flexibly.
+ -
Big chassis with 6700kgs weight, can provide strong power, for heavy implements, such as the reversible plough, heavy trailing harrow, large precision planter,combined land preparation machine and so on.
+
ApplicationField
1.Used in big farm, can take the big harvester
2.Used for some industrial activities
3.Used for goods transpartation
4.Provide power for various works
Products Parameters
| 200HP | |||
|---|---|---|---|
| Model | QLN-2004B | ||
| Engine | Rated Power(kw) | 155 | |
| Type | Direct-injection, water-cooled 6-cylinders diesel engine | ||
| Rotation Speed(r/min) | 2200 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 5800 | ||
| Overall Dimension(mm) | 5240*2345*2920 | ||
| Wheel tread for Front Wheel(mm) | 1850 | ||
| Wheel tread for Rear Wheel(mm) | 1870(Adjustable) | ||
| Wheelbase(mm) | 2727 | ||
| Minimum Ground Clearance(mm) | 480 | ||
| Gear Box | 16F+8R | ||
| Front Tire | 14.9-26 | ||
| Rear Tire | 18.4-38 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 760/850 | |
| Max lifting Force at 610mm (KN) | 29 | ||
| Max Traction (KN) | ≥35 | ||
| Suspension Type | 3 points, CAT.3, | ||
-
Chalion 150hp-180HP Wheeled Tractor
QP series tractor(QLN-1504 1604 1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Learn More -
Chalion 2104B/154.4KW Wheeled Tractor
This 210hp tractor is belong to our QC series tractor, it is with YTO engine,and Germany LUK 14-inch double-acting clutch, And it torque coefficient is large and the transmission ability is strong.and for this tractor clutch,we use Hydraulic boost clutch, it is easy for operator to operate
Learn More -
Chalion 300HP(4wd, 221KW) Wheeled Tractor
Chalion 300HP farm tractor with Shangchai six-cylinder engine, turbocharger, inter-cooling, 12 hours rated power: 221kw, fully enclosed drive cabin, air heater, air conditioner, self-developed Transmission, 16F+4R gears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand front axle， construction machinery rear axle, caliper disc brake, power output shaft rotation speed: 540/1000 r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plow depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.
Learn More -
Chalion 160HP/117.6KW Wheeled Tractor
QP series tractor (QLN-1604) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Learn More -

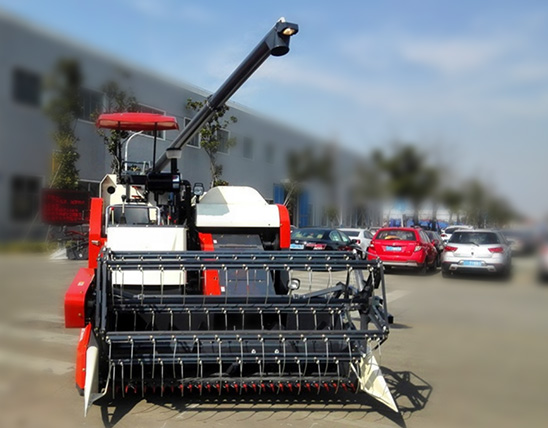

Chalion 4LZ-0.6 Mini Rice Harvester
