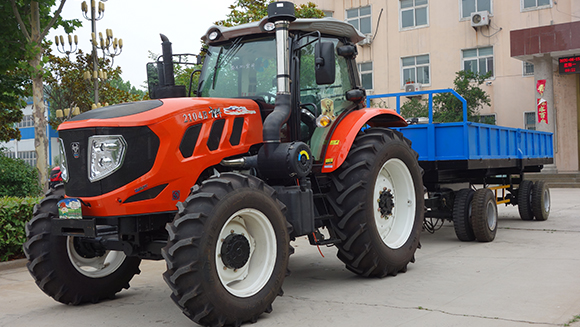

Chalion 2104B/154.4KW Wheeled Tractor
This 210hp tractor belongs to our QC series tractor, it has with YTO engine, and YTO 14-inch double-acting clutch, its torque coefficient is large and the transmission ability is strong, and for this tractor clutch. We use hydraulic boost clutch, it is easy for the operator to operate
Products Description
This 210hp tractor belongs to our QC series tractor, it has with YTO engine, and a 14-inch double-acting clutch, its torque coefficient is large and the transmission ability is strong for this tractor clutch, we use hydraulic boost clutch, it is easy for the operator to operate.
Products Use
For this big tractor mostly use in big size farm, And also it can use at some of the Mechanical engineering.
Products Advantage
-
Equipped with YTO/Weichai Power variable frequency common rail engine, strong power, optimized adjustment of engine curve, lower fuel consumption.t of engine curve, lower fuel consumption.
+ -
Optional YTO clutch, high reliability; universal joint four-wheel-drive front driveshaft, large transmission torque; hydraulic system independent oil, high cleanliness, low failure rate.
+ -
Using 16F+8R meshing shuttle type gear shift, reasonable speed matching, good working adaptability, optional crawler gear.
+ -
240 liters of double under-mounted fuel tanks, long continuous operation time, and high operating efficiency. Full hydraulic steering system, easy to drive, flexible steering, front and rear adjustable steering wheel, more comfortable.
+ -
Upgraded luxurious air-conditioned cab with new interior, new streamlined hood, more beautiful and more comfortable.
+ -
Double pressure hydraulic lifter, equipped with 325/328 gear pump; 3 sets of hydraulic multi-way valves are provided to meet the power requirements of various machines.
+
Products Parameters
| 210HP | |||
|---|---|---|---|
| Model | QLN-2104B | ||
| Engine | Rated Power(kw) | 155 | |
| Type | Direct-injection, water-cooled 6-cylinder diesel engine | ||
| Rotation Speed(r/min) | 2200 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 5800 | ||
| Overall Dimension(mm) | 5240*2345*2920 | ||
| Wheel tread for Front Wheel(mm) | 1850 | ||
| Wheel tread for Rear Wheel(mm) | 1870(Adjustable) | ||
| Wheelbase(mm) | 2727 | ||
| Minimum Ground Clearance(mm) | 480 | ||
| Gear Box | 16F+8R | ||
| Front Tire | 14.9-26 | ||
| Rear Tire | 18.4-38 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 760/850 | |
| Max lifting Force at 610mm (KN) | 29 | ||
| Max Traction (KN) | ≥35 | ||
| Suspension Type | 3 points, CAT.3, | ||
-
