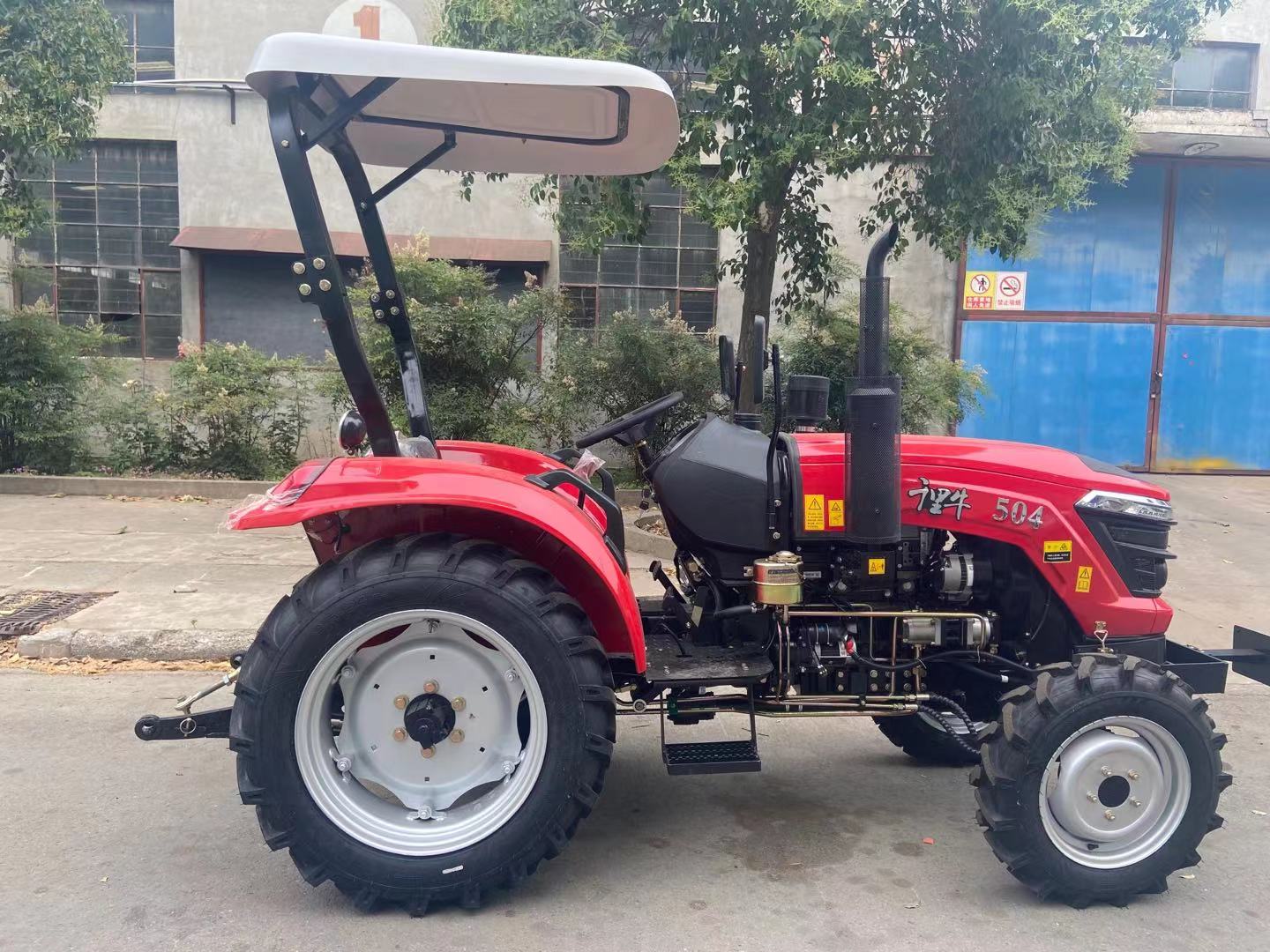

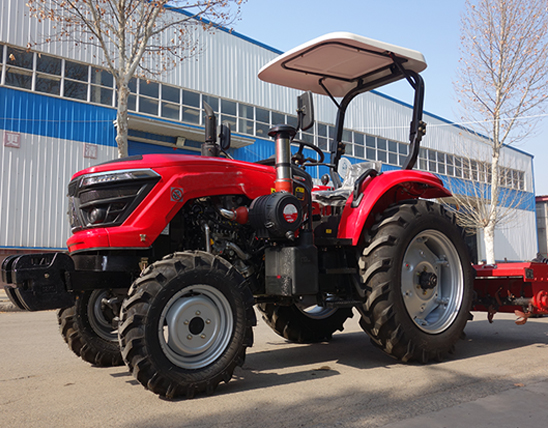

Chalion QA Series(50-60hp) Wheeled Tractor
Farm QA series (50HP 60HP) tractors are equipped famous brand engine YTO/LAIDONG/YUNNEI, with good performance, low fuel consumption, and high economic efficiency.
1. This series of agriculture is suitable for market demand at home and abroad;
2. F8+R8/R2 shuttle shift, enhanced chassis;
3. These farm wheel tractors have reasonable gear distribution, reliable in performance;
4. Low fuel consumption and large torque reserve, dynamic economy;
5. Frame-type cab, good sealing, driving safety and comfort;
6. Multi-power output, good match with farm implements to meet the multiple requirements.
Products Description
Farm QA series (50HP 60HP) tractors are equipped famous brand engine YTO/LAIDONG/YUNNEI, with good performance, low fuel consumption, and high economic efficiency.
1. This series of agriculture is suitable for market demand at home and abroad;
2. F8+R8 shuttle shift, enhanced chassis;
3. These farm wheel tractors have reasonable gear distribution, reliable in performance;
4. Low fuel consumption and large torque reserve, dynamic economy;
5. Frame-type cab, good sealing, driving safety and comfort;
6. Multi-power output, good match with farm implements to meet the multiple requirements.
Products Use
Farm usage. Equipped with various farm implements to help you do farm work, such as ploughing, planting, cultivating, etc.
Products Advantage
-
Equipped with international standard NTP 1/2 hydraulic output connectors, 1/2 way multi-valve and hydraulic pump with output flow of 35 l/m;
+ -
The gear configurations of F8+R8/R2 make that the velocity distribution reasonable to meet different operating needs;
+ -
Optional single/double-acting clutches for different needs and operations; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost.
+ -
The Center console with a simple structure, high-cost efficiency, and easy maintenance, and an external differential lock is easy for maintenance;
+ -
Powered by 4-cylinder direct injection YTO/LAIDONG/YUNNEI engine, energy-saving, environmental protection, good stability, and more advanced technology.
+ -
New designed front axle is adopted on 4WD tractor, mid hydraulic cylinder makes the structure easier and more reliable.The tie rod is canceled to provide higher clearance and better passing ability.
+
Products Parameters
| 50HP | |||
|---|---|---|---|
| Model | QLN-504 | ||
| Engine | Rated power(kw) | 31.3 | |
| Type | 4 Cylinders, water-cooled, diesel engine | ||
| Rotation speed(r/min) | 2300 | ||
| Dimension | Wheel drive | 4WD | |
| Minimum using weight | 1625 | ||
| Overall dimension(mm) | 3540*1560*2340 | ||
| Wheel tread(mm) | Front wheel | 1230 | |
| Rear wheel | 1110-1400 | ||
| Wheelbase(mm) | 1820 | ||
| Minimum ground clearance(mm) | 280 | ||
| Gearbox | F8+R8/R2 shuttle shift | ||
| Tire | Front tire | 7.50-16 | |
| Rear tire | 11.2-28 | ||
| Steering type | Hydraulic | ||
| Working device | PTO shaft speed (r/min) | 540/720 or 540/1000 | |
| Max lifting force (KN) | 10.5 | ||
| Suspension type | CategoryⅠ3-point linkage | ||
| 60HP | |||
|---|---|---|---|
| Model | QLN-604 | ||
| Engine | Rated power(kw) | 44.1 | |
| Type | 4 Cylinders, water-cooled, diesel engine | ||
| Rotation speed(r/min) | 2300 | ||
| Dimension | Wheel drive | 4WD | |
| Minimum using weight | 1625 | ||
| Overall dimension(mm) | 3540*1560*2340 | ||
| Wheel tread(mm) | Front wheel | 1230 | |
| Rear wheel | 1110/1400 | ||
| Wheelbase(mm) | 1820 | ||
| Minimum ground clearance(mm) | 280 | ||
| Gearbox | F8+R8/R2 shuttle shift | ||
| Tire | Front tire | 7.50-16 | |
| Rear tire | 11.2-28 | ||
| Steering type | Hydraulic | ||
| Working device | PTO shaft speed (r/min) | 540/720 or 540/1000 | |
| Max lifting force (KN) | 10.5 | ||
| Suspension type | CategoryⅠ3-point linkage | ||
-
Chalion 50HP/36.8KW Wheeled Tractor
1) This Chalion QA Series 50HP Wheeled Tractor suitable for market demand at home and abroad; 2) F8+R8/R2 shuttle shift, enhanced chassis; 3) These farm wheel tractors are reasonable gear distribution, reliable in performance; 4) Low fuel consumption and large torque reserve, dynamic economy; 5) Frame type cab, good sealing, driving safety and comfortable; 6) Multi-power output, good match with farm implements to meet the multiple requirements.
Learn More -
Chalion 60HP/44.1KW Wheeled Tractor
1) This Chalion QA Series 60HP Wheeled Tractor suitable for market demand at home and abroad; 2) F8+R8/R2 shuttle shift, enhanced chassis; 3) These farm wheel tractors are reasonable gear distribution, reliable in performance; 4) Low fuel consumption and large torque reserve, dynamic economy; 5) Frame type cab, good sealing, driving safety and comfortable; 6) Multi-power output, good match with farm implements to meet the multiple requirements.
Learn More -
Chalion 70HP/51.5KW Wheeled Tractor
QB series 70HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Learn More -
Chalion 100HP/73.5KW Wheeled Tractor
This Chalion QK Series 100HP Wheeled Tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More -
Chalion 120HP/88.2KW Wheeled Tractor
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More -
Chalion-181(18hp) Walking Tractor
QLN 18hp walking tractor is a precious working tool in agriculture and gardening. It is mainly used for soil tilling, and in combination with the series of available attachments, the walking tractor can be used to carry out a number of different works.
Learn More
