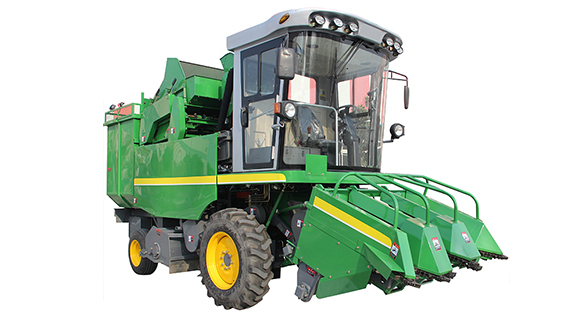

Chalion Corn Harvester
Chalion Corn harvester is an agricultural tool that uses machinery to harvest corn stalks according to agronomic requirements when the corn is mature or close to maturity.
Products Description
Suitable: Immature corn (green stalk)
Function: corn picking + peeling + corn straw cutted and chopped
Grain to be collected automatically and fell in down tray while peeling
Compact structure, small turning radius, is suitable for small farmland
It even can cross rows to collect the maize
High rate of peeling, less broken grain
The cutting effect is perfect
Named brand engine, enough power
Strong gearbox and reliable
Automatic lubrication system as optional
Air conditioner as optional
The clearing fan on conveyor as optiona
ProductsUse
Corn harvester is an agricultural tool that uses machinery to harvest corn stalks according to agronomic requirements when the corn is mature or close to maturity.
Products Advantage
Strong power, high efficiency and high reliability
Yuchai high pressure common rail engine provides high torque reserves and strong power.
3+1 mechanical gearbox gives you more comfortable operation experience.
Strengthened fabricated threshing chamber recess plate gives a stronger threshing capability and thorough separation.
Comfortable and safe driving
Air-conditioned cab with ergonomics optimization design is featured with dust prevention, shock absorption, noise reduction and more comfortable driving.
Multi-functional mono-lever control, which is convenient and comfortable.
Hydraulic main clutch for more labor-saving operation.
Excellent performance and high operation efficiency
Tangential flow + horizontal axis flow threshing unit has stronger threshing ability with more thorough separation.
Rear-mounted free-swinging knife slaw cutter for good chopping effect and even scattering.
It can harvest corn, sorghum and other crops.
Upgraded items of the product
Upgraded horizontal axial flow drum provides stronger threshing capability and more thorough separation.
The vulnerable axis is improved with higher strength.
The grain bin is expanded for a longer operation time.
The beating chamber is transformed for several purposes.
Products Parameters
| Main performance and technical specifications | |||
|---|---|---|---|
| Item | Project | Design Value | |
| 1 | Model | 4YZP-4D | |
| 2 | Type | Wheel self-propelled | |
| 3 | Engine type | YC4A | |
| 4 | Engine Rated Power | 160hp | |
| 5 | Engine Rotary speed | 2300rpm | |
| 6 | Overall Weight | 7260kg | |
| 7 | Overall dimension | 6930×2560×3340mm | |
| 8 | Working rows | 4 | |
| 9 | Working width | 2340mm | |
| 10 | Application row width | 450-650mm | |
| 11 | Cutting center distance | 550mm | |
| 12 | Max. unloading height | 2150mm | |
| 13 | Conveyor Structural style | Chain scraper | |
| 14 | Conveyor Max. Crossing altitude | 3360mm | |
| 15 | Min. Ground Clearance | 300mm | |
| 16 | Working speed | 1.84～5.2km/h | |
| 17 | Productivity | 0.4～0.65hm²/h | |
| 18 | Fuel consumption | ≤30kg/hm² | |
| 19 | Snapping roll/Board type | Roll type | |
| 20 | Snapping roll/Board type size | Φ92*862mm | |
| 21 | Stripping roller form | Rubber Roller | |
| 22 | stripping roller size | Φ72*830mm | |
| 23 | Qty of stripping rollers | 20 | |
| 24 | Fan style | Centrifugal | |
| 25 | Fan Diameter | 220mm | |
| 26 | Grain Tank Volume | 2000L | |
| 27 | Grain Unloading type | Hydraulic | |
| 28 | Grain driving type | Hydraulic cylinder | |
| 29 | Stalks crusher Working width | 2250mm | |
| 30 | Stalks crusher Position | Under picker head and middle machine | |
| 31 | Gearshift method | Mechanical | |
| 32 | Drive Axle Type | Mechanical Gearbox＋Reduction of the loop Box | |
| 33 | Drive Axle driving type | Mechanical | |
| 34 | Steering Type | Power steering box | |
| 35 | Steering Power mode | Hydraulic | |
| 36 | Brake Type | Disc | |
| 37 | Brake Power mode | Hydraulic power assisted | |
| 38 | Wheel Base | 2930mm | |
| 39 | Wheel Track (Guiding Wheel) | 1640mm | |
| 40 | Wheel Track (Driving Wheel) | 1750mm | |
| 41 | Tyre Size (Guiding Wheel) | 10–15 | |
| 42 | Tyre Size (Driving Wheel) | 15–24 | |
-
Chalion 4LZ-0.6 Mini Rice Harvester
Chalion 4LZ-0.6 mini rice harvester is a full-feed self-propelled crawler-type small combine harvester, which can be used for rice and wheat harvesting in hilly areas. This machine uses a one-lever control for easy operation. High operating efficiency, using gasoline power, energy saving, and environmental protection.
Learn More -
Rice Milling Machine
The Rice Mill Machine can shell rice and grind bean and corn. whiteness the rice and separate the whole rice from the broken one. Shelling rate is over 90%. Blade-free rice mill machine, equipped with stainless steel screen, with partial metal housing, the disposable wear-resistant reaches to 8,000kg or more, keeping whole rice grain; the supporting power is 2.2kW, with capacity of 120-180kg/h, rice sieve mesh size is 1.2mm, the hopper can be loaded with 15-20kg of rice, which is applicable to rice, millet, corn, soybeans, etc., can be equipped with 170F, 168F gasoline engine or air-cooled diesel engine.
Learn More -
Rice Transplanter
The Chalion brand walking rice transplanter is mainly for the rice planting, it suitable for small paddy field, it exported to West Africa, South-east Asian countries, for example, Nigeria, Ghana, Indonesia, Malaysia, Philippines and so on.
Learn More -
Chalion 186 Garden Power Tiller
The Chalion 186 Garden Power Tiller uses 6.3KW Diesel engine and triangle belt transmission mode, and can be equipped with different types of ditching knives to realize ditching and weeding. Moreover, this small power tiller uses electric start mode, which has low noise, high efficiency and energy saving.
Learn More -

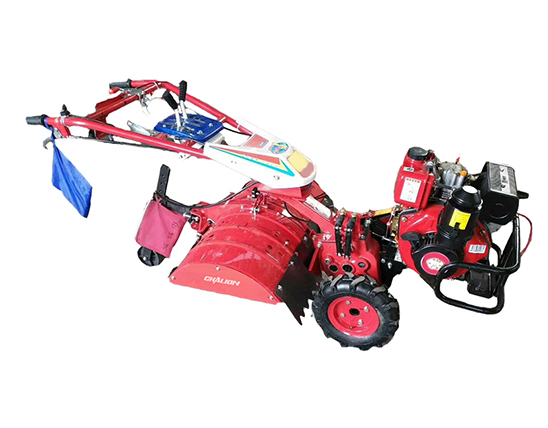

Chalion 173F Power Tiller
The Chalion 173F four-wheel drive power tiller machine adopts diesel engine power and skin-freezing transmission mode, which is easier and higher in operation quality. The small power tiller can be used with small hoe, harvester, planter and other agricultural machinery.
Learn More -

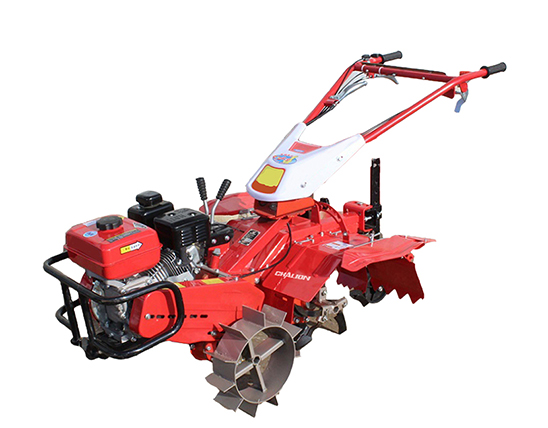

Chalion 170F Power Tiller
