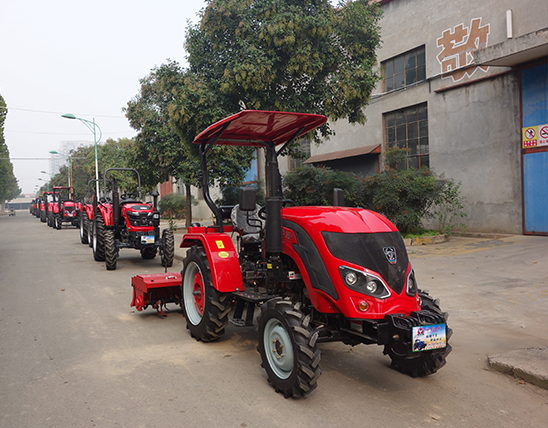

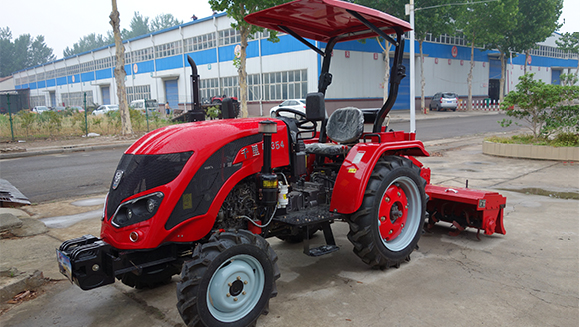

Chalion QY Series 30HP Wheeled Tractor
1. This series wheeled tractors are equipped with creeping shift, double stage clutch, these are much easier to use with farm implements.
2. 4WD agriculture tractors are equipped with Laidong, Yangdong, Xichai brand water cooled engine.
3. Farm tractors could be matched with various farm implements, like front end loaders and backhoe, to help you do various agriculture work.
4. Equipped with hydraulic power pumps, it provides stronger power for tractors linkage device.
5. F8+R2 creep gearshifts
Products Description
This series 30hp wheeled tractors are equipped with creeping shift, double stage clutch, these are much easier to use with farm implements
Products Use
Farm usage. Equipped with various farm implements to help you do farm work, such as ploughing, planting, cultivating, etc.
Products Advantage
-
Equipped with international standard NTP 1/2 hydraulic output connectors, 1/2 way multi-valve and hydraulic pump with output flow of 35 l/m;
+ -
The gear configurations of F8+R2 makes that the velocity distribution is reasonable to meet different operating needs;
+ -
Optional single/double-acting clutches for different needs and operation; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost.
+ -
Center console with simple structure, high cost efficiency and easy maintenance and an external differential lock is easy for maintenance;
+ -
Powered by 4-cylinders direct injection Laidong/Yangdong/Xichai engine, energy-saving, environmental protection, good stability and more advanced technology; it powered from 25HP to 50HP which can provide power up to 50HP;
+ -
New designed front axle is adopted on 4WD tractor, mid hydraulic cylinder makes the structure easier and more reliable.The tie rod is canceled to provide higher clearance and better passing ability.
+
Products Parameters
| 30HP | |||
|---|---|---|---|
| Model | QLN-304 | ||
| Rated Power (KW) | 22.06 | ||
| Engine Model | Laidong/ Yangdong/Xichai | ||
| Rotation speed(r/min)speed(r/min) | 2300 | ||
| Structure Weight (KG) | 1050-1060 | ||
| Length× Width× Height (mm) | 3215*1550*2230(To Sunroof) | ||
| Tyre | Front/Rear | 6.50-16/9.5-24 | |
| PTO | Model& Size | 135 Rectangle Spline with 6 teeth | |
| Speed(r/min) | 540,540/760, 540/720, 540/1000 | ||
| Gear Box | F8+R2/ (4+1)*2 | ||
| Max Traction Force (KN) | 6.45 | 6.8 | |
-
Chalion QC Series 210HP Wheeled Tractor
This 210hp tractor is belong to our QC series tractor, it is with YTO engine, and Germany LUK 14-inch double-acting clutch, And it torque is large and the transmission ability is strong. and for this tractor clutch, we use Hydraulic boost clutch, it is easy for operator to operate
Learn More -
QB Series 65HP Wheeled Tractor
QB series 65HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Learn More -
Chalion QG Series 200HP Wheeled Tractor
QG series(QLN-2004) equipped with Weichai brand 6 cylinders diesel engine, with turbocharger and intercooling system, gearbox 16F+16R with synchronizer shift, high torque output with low fuel consumption, support three pairs hydraulic output, can provide strong power to the heavy implements.
Learn More -
Chalion QB Series 75HP Wheeled Tractor
Chalion QB Series 75HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Learn More -
QK Series 90HP Wheeled Tractor
This series 90hp tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More
