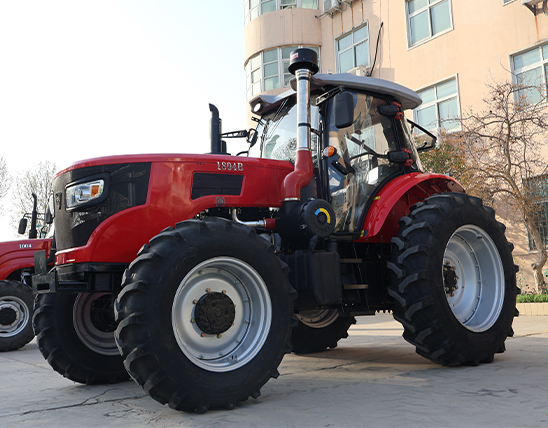

Chalion QP Series 180HP Wheeled Tractor
QP series tractor (QLN-1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Products Description
QP series tractor (QLN-1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Products Advantage
-
6-cylinder turbocharge engine with strong power, high fuel efficiency, and high torque output;
+ -
Hydraulic driving brake system and handle-manipulated stop braking system, high safety coefficient;
+ -
YTO brand independent-operation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity;
+ -
The use of flat floors, hanging pedals, side manipulation, 16+8 shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution;
+ -
ZF(Germany) front axle with advanced structure, high carrying ability, high ground clearance, easy operation, and other advantages suitable for operation under various working conditions;
+ -
New-generation graceful and splendid streamline casing, meeting requirements for safety,dust-proof, noise reduction, and heat dissipation. Enclosed cab with heater, fan, air conditioner, and the sounding system is optional, which makes driving safer and more comfortable.
+
Products Parameters
180HP | |||
---|---|---|---|
Model | QLN-1804 | ||
Engine | Rated power(kw) | 132.4 | |
Type | Water-cooled, in-line, four stroke, direct injection | ||
Rotation speed(r/min) | 2300 | ||
Dimension | Wheel drive | 4*4 | |
Minimum using weight (kg) | 5050 | ||
Overall dimension(mm) | 5060*2345*2995 | ||
Wheel tread(mm) | Front wheel | 1954 | |
Rear wheel | 1850 | ||
Wheelbase(mm) | 2543 | ||
Minimum ground clearance(mm) | 395 | ||
Gearbox | 16F+8R | ||
Tire | Front tire | 14.9-26 | |
Rear tire | 18.4-38 | ||
Steering type | Hydraulic power steering | ||
Working device | PTO shaft speed (r/min) | 540/1000 | |
Max lifting force(KN) | 31.78 | ||
Suspension type | CategoryⅡ3-point linkage |
