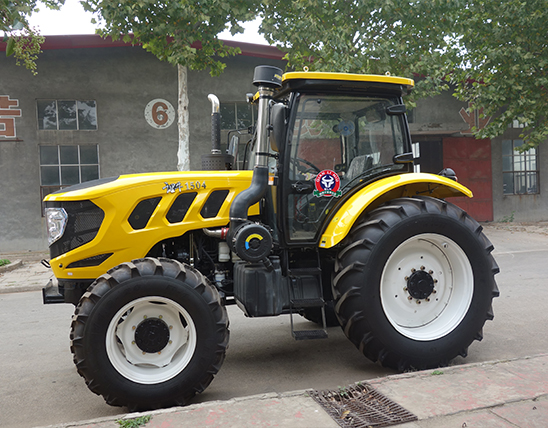

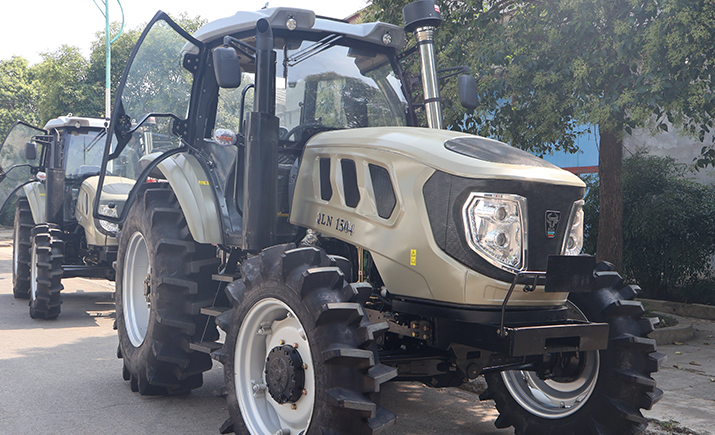

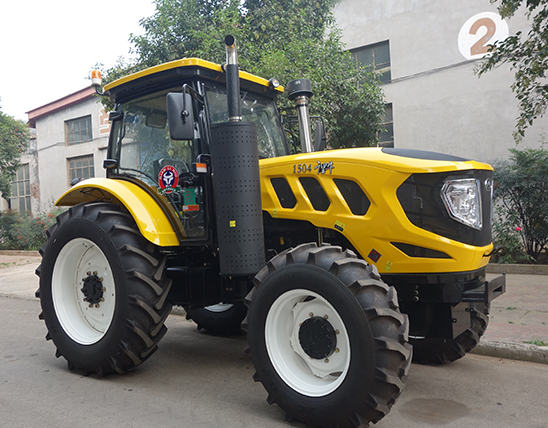

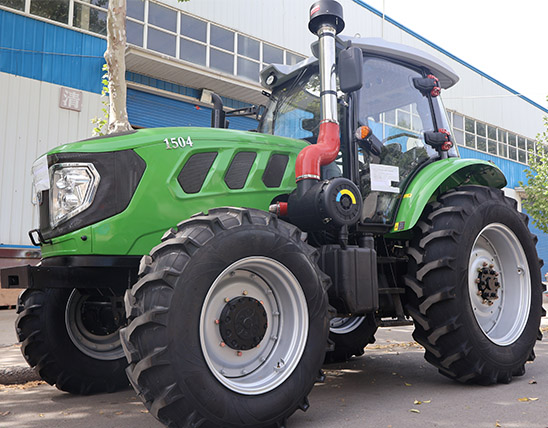

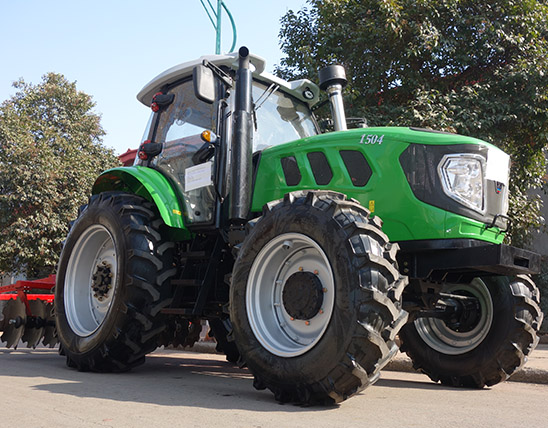

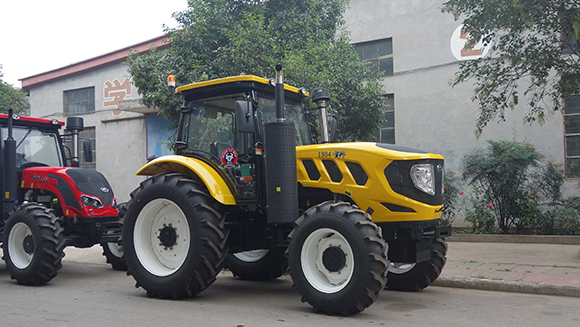

Chalion QP Series 150HP Wheeled Tractor
QP series tractor (QLN-1504) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Products Description
QP series tractor (QLN-1504) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Products Advantage
-

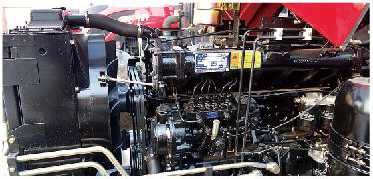

6-cylinder turbocharge engine with strong power, high fuel efficiency, and high torque output;
+ -

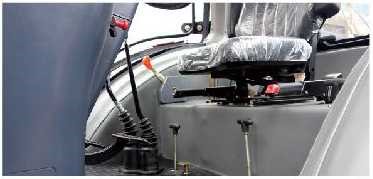

Hydraulic driving brake system and handle-manipulated stop braking system, high safety coefficient；
+ -

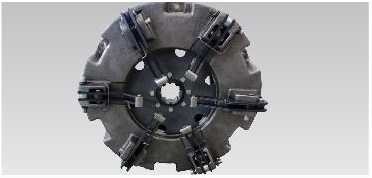

YTO brand independent-operation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -

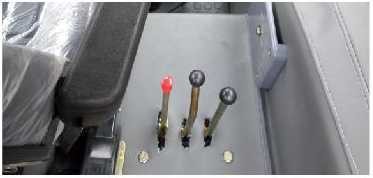

The use of flat floors, hanging pedals, side manipulation, 16+8 shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution；
+ -

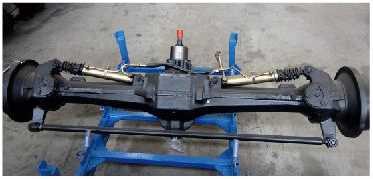

ZF(Germany) front axle with advanced structure, high carrying ability, high ground clearance, easy operation, and other advantages suitable for operation under various working conditions;
+ -
New-generation graceful and splendid streamline casing, meeting requirements for safety,dust-proof, noise reduction, and heat dissipation. Enclosed cab with heater, fan, air conditioner, and the sounding system is optional, which makes driving safer and more comfortable.
+
Products Parameters
| 150HP | |||
|---|---|---|---|
| Model | QLN-1504 | ||
| Engine | Rated power(kw) | 110.3 | |
| Type | Direct-injection,water-cooled 6-cylinders diesel engine | ||
| Rotation speed(r/min) | 2200 | ||
| Dimension | Wheel drive | 4*4 | |
| Minimum using weight (kg) | 5050 | ||
| Overall dimension(mm) | 5060*2345*2995 | ||
| Wheel tread(mm) | Front wheel | 1900 | |
| Rear wheel | 1850 | ||
| Wheelbase(mm) | 2543 | ||
| Minimum ground clearance(mm) | 395 | ||
| Gearbox | 16F+8R | ||
| Tire | Front tire | 14.9-26 | |
| Rear tire | 18.4-38 | ||
| Steering type | Hydraulic power steering | ||
| Working device | PTO shaft speed (r/min) | 540/1000 | |
| Max lifting force(KN) | 26.5 | ||
| Suspension type | Category III 3-point linkage | ||
-
