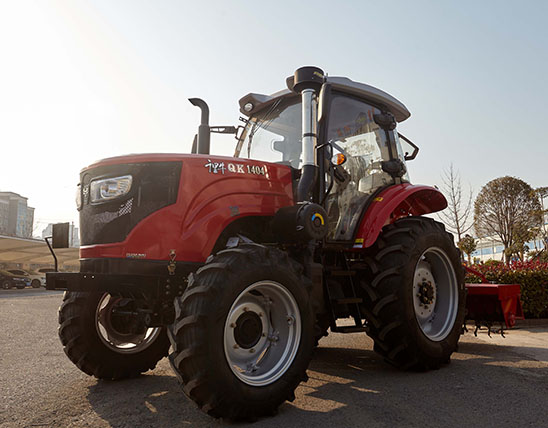

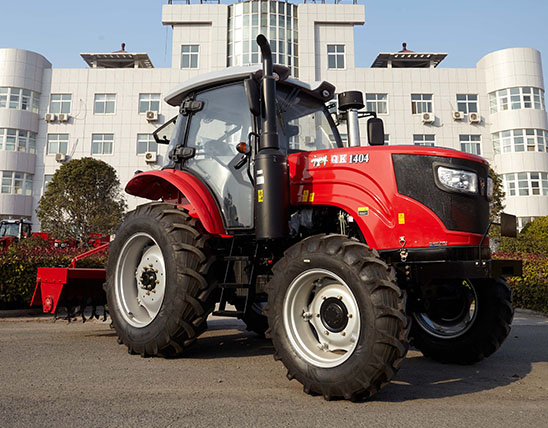

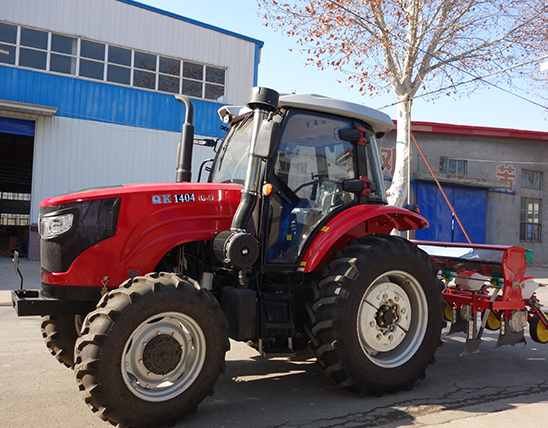

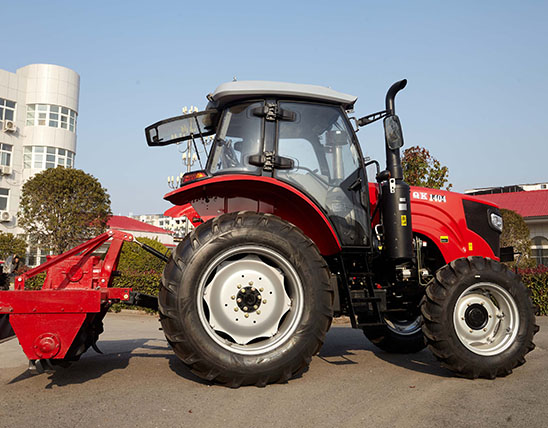

Chalion QK Series 140HP Wheeled Tractor
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Description
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Advantage
-
Matched to YUCHAI, LOVOL turbocharger engine/YTO naturally aspirated engine with strong power, high fuel efficiency and large torque coefficient；
+ -
ZF(Germany) front axle is used on the tractor having high carrying capacity and clearance; double steering cylinders make the steering more flexible；
+ -
Luk(Germany) 12-inch independentoperation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -
540/760,540/1000,760/850 and 760/1000 optional for PTO speed and applicable to various machine deployment;
+ -
Adopting side-mounted control mechanism and collar shift, transmission gears of F16+R8, crawler of F16+R8, proper speed matching, strong agricultural applicability, high work efficiency, and high fuel economy；
+ -
Comprehensive force/position control lifter for easy and convenient operation; strong pressure device lifter with up to 1800 kg of max lifting force at the suspension point for the best rotary tillage and ploughing effect.
+
Products Parameters
| 140HP | ||||
|---|---|---|---|---|
| Model | QLN-1404 | |||
| Engine | Rated Power(kw) | 103 | ||
| Type | Direct-injection, water-cooled 6-cylinder diesel engine | |||
| Rotation Speed(r/min) | 2300 | |||
| Dimension | Wheel Drive | 4WD | ||
| Minimum Using Weight(kg) | 5050 | |||
| Overall Dimension(mm) | 5060*2345*2995 | |||
| Wheel tread (mm) | Front Wheel | 1954 | ||
| Rear Wheel | 1850(Adjustable) | |||
| Wheelbase(mm) | 2543 | |||
| Minimum Ground Clearance(mm) | 395 | |||
| Gear Box | 16F+8R | |||
| Front Tire | 13.6-24 | |||
| Rear Tire | 16.9-34 | |||
| Steering Type | Hydraulic power steering | |||
| Working Device | PTO Shaft Speed(r/min) | 540/1000 | ||
| Max lifting Force at 610mm (KN) | 25 | |||
| Max Traction (KN) | 28 | |||
| Suspension Type | 3 points linkage, CAT.2, | |||
-
