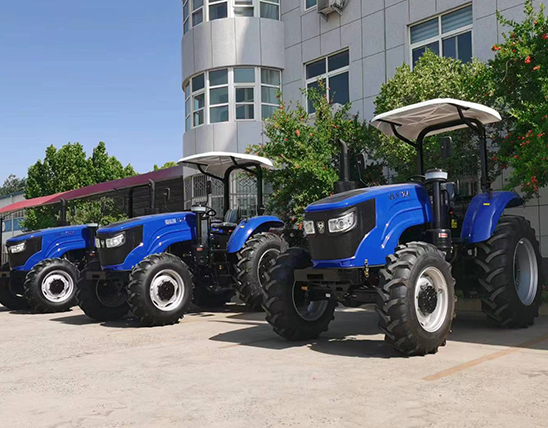

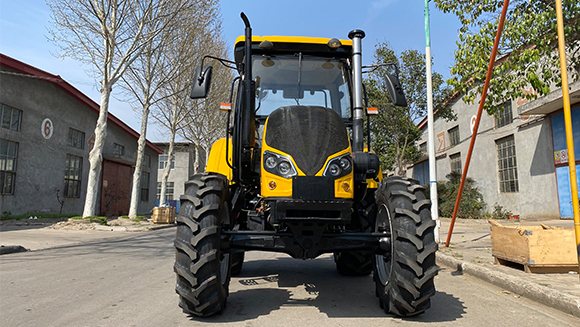

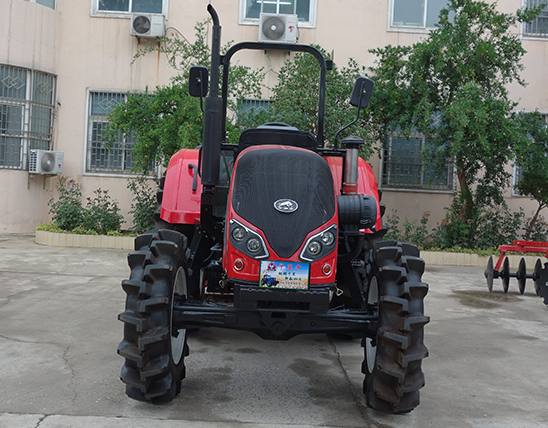

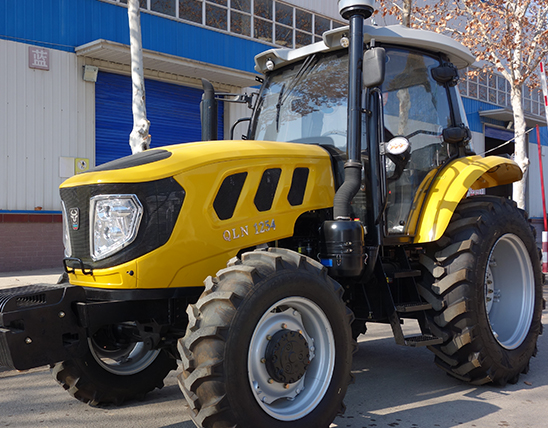

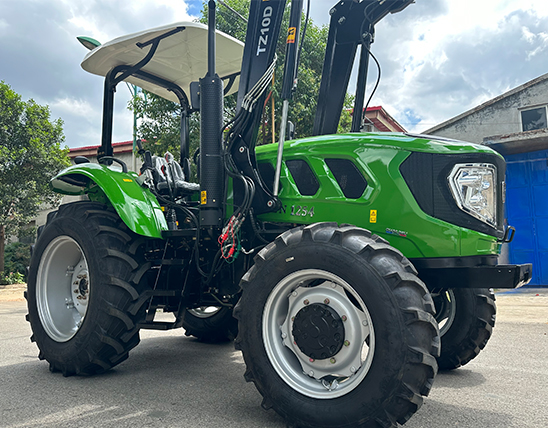

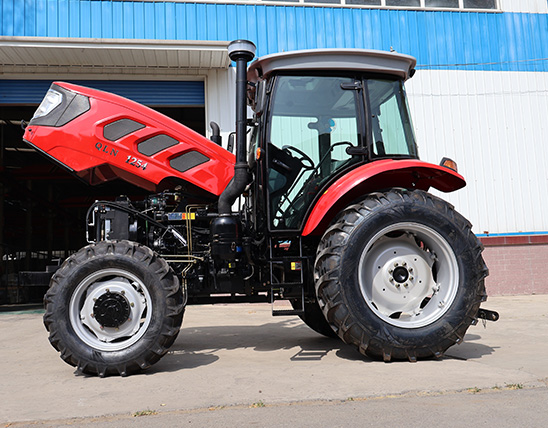

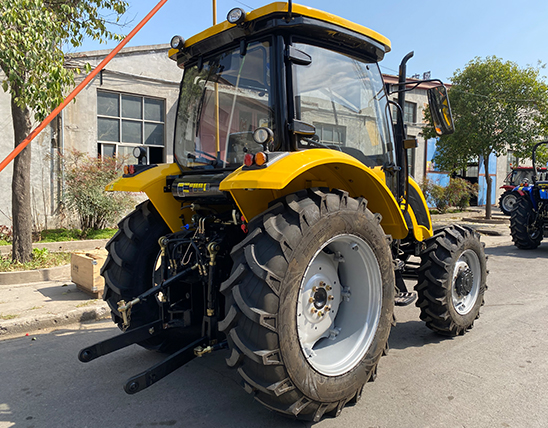

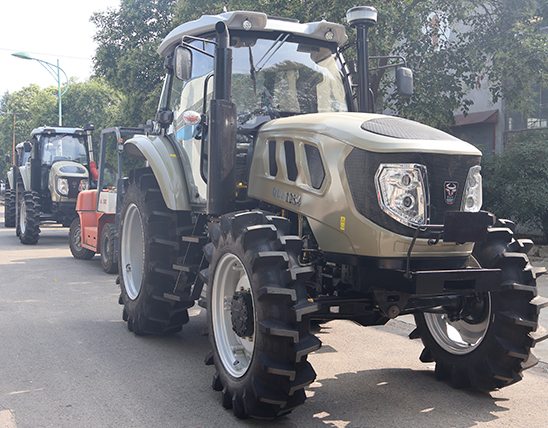

Chalion 125HP/ 91.9KW Wheeled Tractor
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance, 16F+8R gear box, hydraulic steering, and dual action clutch.
Products Description
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Advantage
-
Matched to YTO engine naturally aspirated engine with strong power, high fuel efficiency and large torque coefficient；
+ -
Front axle is used on the tractor having high carrying capacity and clearance; double steering cylinders make the steering more flexible；
+ -
12/13-inch independentoperation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -
540/760,540/1000,760/850 and 760/1000 optional for PTO speed and applicable to various machine deployment;
+ -
Adopting side-mounted control mechanism and collar shift, transmission gears of F16+R8, crawler of F16+R8, proper speed matching, strong agricultural applicability, high work efficiency, and high fuel economy；
+ -
Comprehensive force/position control lifter for easy and convenient operation; strong pressure device lifter with up to 1800 kg of max lifting force at the suspension point for the best rotary tillage and ploughing effect.
+
Products Parameters
| 125HP | |||
|---|---|---|---|
| Model | QLN-1254 | ||
| Engine | Brand | YTO | |
| Rated power(kW) | 91.9 | ||
| Type | 4/6-cylinder diesel engine | ||
| Rotation speed(r/min) | 2300 | ||
| Fuel tank capacity(L) | 150 | ||
| Dimension | Wheel drive | 4*4 | |
| Minimum using weight (kg) | 4250 | ||
| Overall dimension(mm) | 4280*2085*2925 | ||
| Wheel tread(mm) | Front-wheel | 1954 | |
| Rear wheel | 1850 | ||
| Wheelbase(mm) | 2195 | ||
| Minimum ground clearance(mm) | 410 | ||
| Gearbox | 16F+8R | ||
| Tire | Front tire | 13.6-24 | |
| Rear tire | 16.9-34 | ||
| Steering type | Hydraulic power steering | ||
| Working device | PTO shaft speed (r/min) | 540/1000 | |
| Max lifting Force at 610mm (KN) | 22.1 | ||
| Suspension type | CategoryⅡ3-point linkage | ||
-
