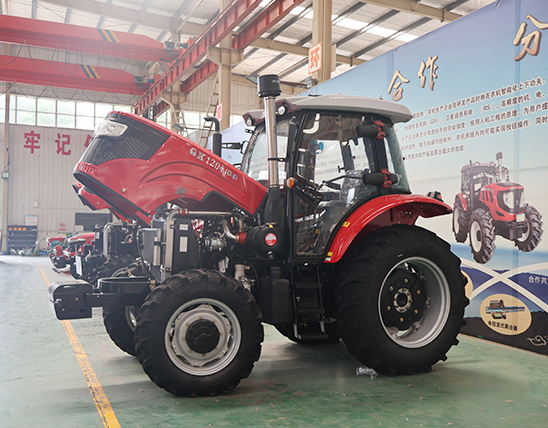

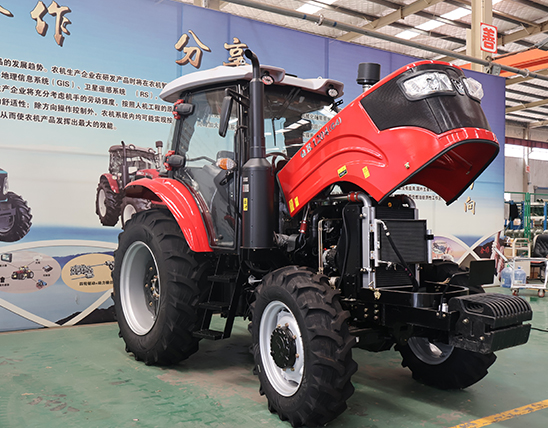

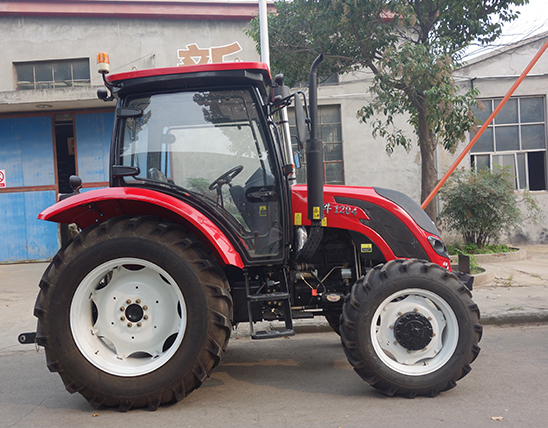

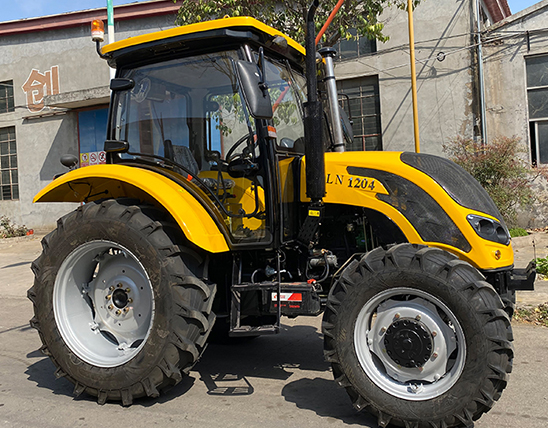

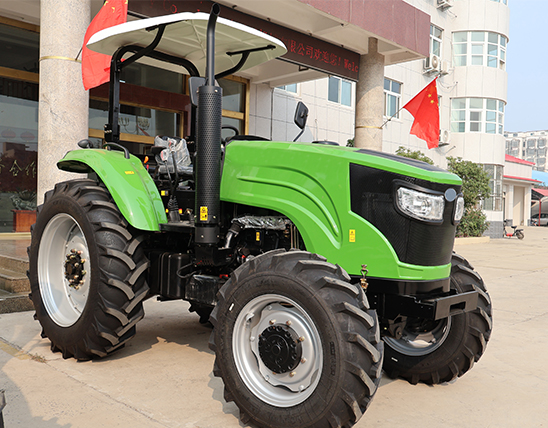

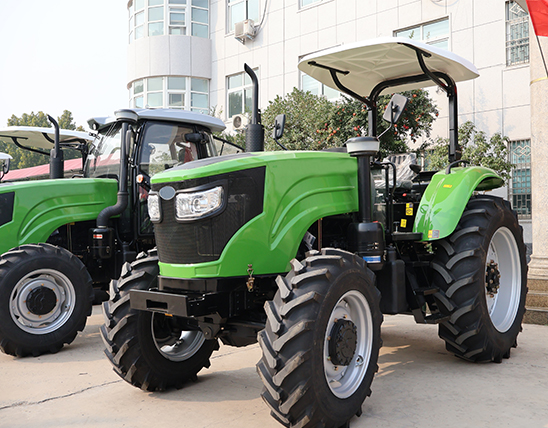

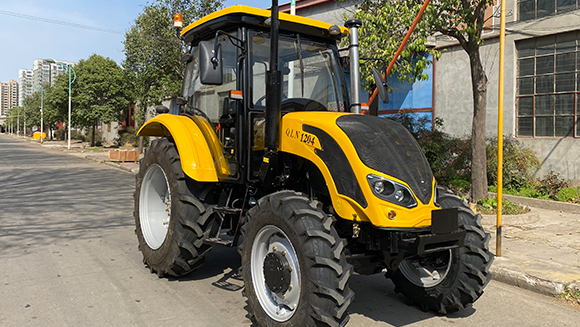

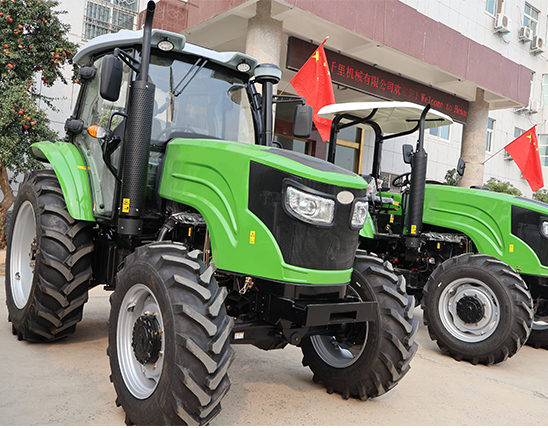

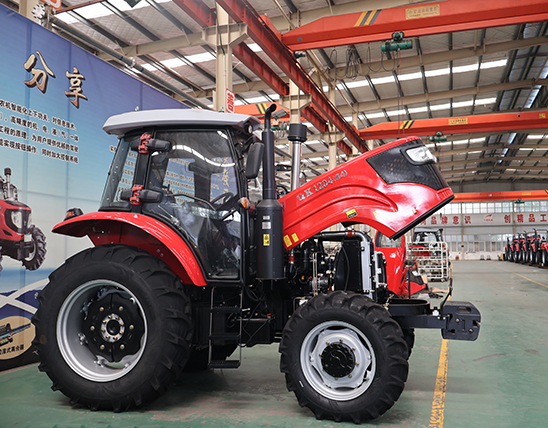

Chalion QK Series 120HP Wheeled Tractor
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Description
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Advantage
-
Matched to YUCHAI, LOVOL turbocharger engine/YTO naturally aspirated engine with strong power, high fuel efficiency and large torque coefficient；
+ -
ZF(Germany) front axle is used on the tractor having high carrying capacity and clearance; double steering cylinders make the steering more flexible；
+ -
Luk(Germany) 12-inch independentoperation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -
540/760,540/1000,760/850 and 760/1000 optional for PTO speed and applicable to various machine deployment;
+ -
Adopting side-mounted control mechanism and collar shift, transmission gears of F16+R8, crawler of F16+R8, proper speed matching, strong agricultural applicability, high work efficiency, and high fuel economy；
+ -
Comprehensive force/position control lifter for easy and convenient operation; strong pressure device lifter with up to 1800 kg of max lifting force at the suspension point for the best rotary tillage and ploughing effect.
+
Products Parameters
| 120HP | ||||
|---|---|---|---|---|
| Model | QLN-1200 | QLN-1204 | ||
| Engine | Rated power(kw) | 81 | ||
| Type | Water-cooled, in-line, four stroke, direct injection | |||
| Rotation speed(r/min) | 2300 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 3560 | 3800 | ||
| Overall dimension(mm) | 4280*2085*2925 | |||
| Wheel tread(mm) | Front wheel | 1520 | 1610 | |
| Rear wheel | 1620 | |||
| Wheelbase(mm) | 2195 | |||
| Minimum ground clearance(mm) | 450 | 370 | ||
| Gearbox | 16F+8R | |||
| Tire | Front tire | 6.5-20 | 11.2-24 | |
| Rear tire | 16.9-34 | |||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 760/1000 | ||
| (optional 540/760,540/1000,760/850) | ||||
| Max lifting force(KN) | 15.9 | |||
| Suspension type | CategoryⅡ3-point linkage | |||
-
QK Series 90HP Wheeled Tractor
This series 90hp tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More -
Chalion LW Series Backhoe
Frond End and Backhoe is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
Learn More -
Chalion SM Series Rotary Mower
Chalion SM Series Rotary Mower are suitable for cleaning and slashing of bush and grassland. As well as improving of uneven ranch.
Learn More -

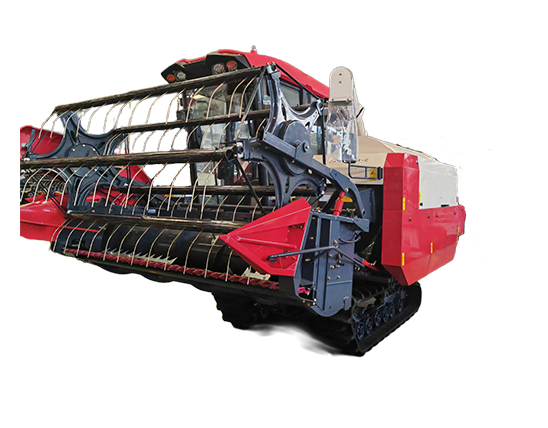

Chalion 4LZ-0.6 Mini Rice Harvester
