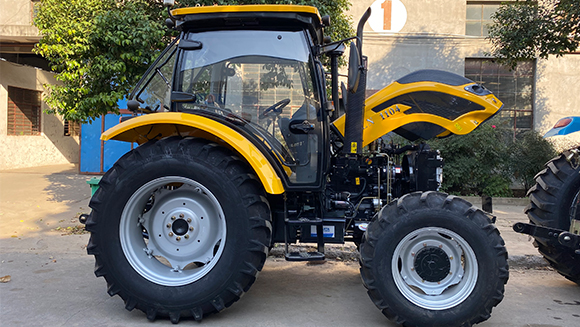

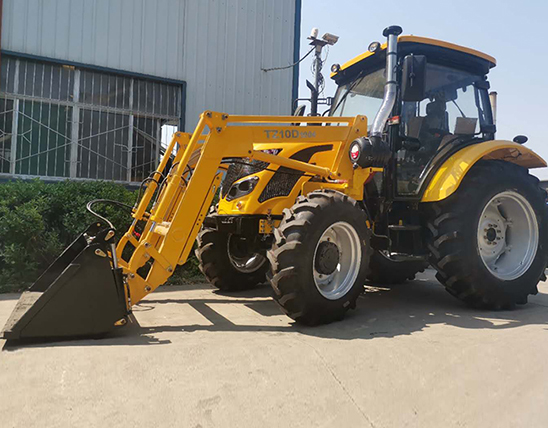

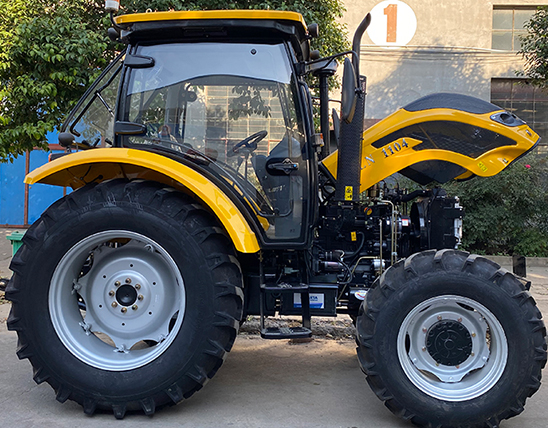

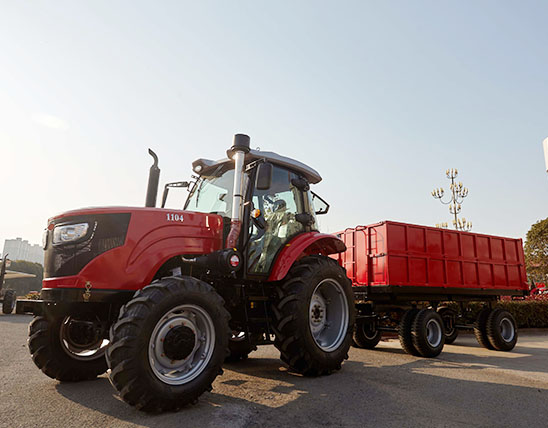

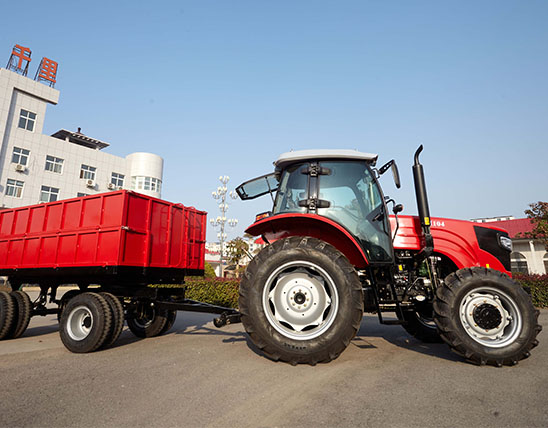

Chalion 110HP/80.9KW Wheeled Tractor
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance, 16F+8R gearbox, hydraulic steering, and dual action clutch.
Products Description
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance, 16F+8R gearbox, hydraulic steering, dand ual action clutch.
Products Advantage
-

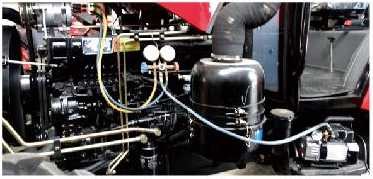

Matched to YTO naturally aspirated engine with strong power, high fuel efficiency and large torque coefficient；
+ -

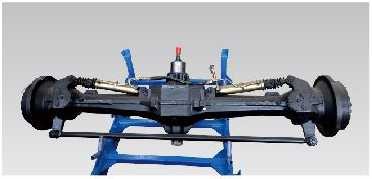

Front axle is used on the tractor having high carrying capacity and clearance; double steering cylinders make the steering more flexible；
+ -

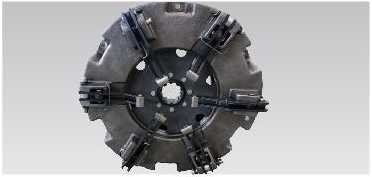

YTO 12/13-inch independentoperation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -

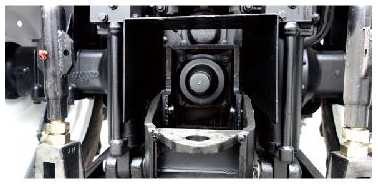

540/760,540/1000,760/850 and 760/1000 optional for PTO speed and applicable to various machine deployment;
+ -

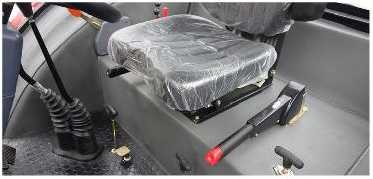

Adopting side-mounted control mechanism and collar shift, transmission gears of F16+R8, crawler of F16+R8, proper speed matching, strong agricultural applicability, high work efficiency, and high fuel economy；
+ -
Comprehensive force/position control lifter for easy and convenient operation; strong pressure device lifter with up to 1800 kg of max lifting force at the suspension point for the best rotary tillage and ploughing effect.
+
Products Parameters
| 110HP | ||||
|---|---|---|---|---|

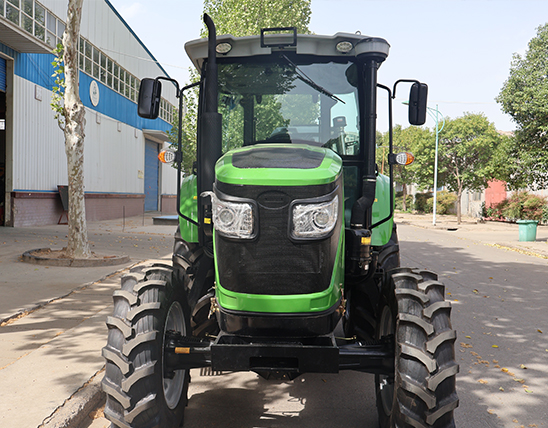

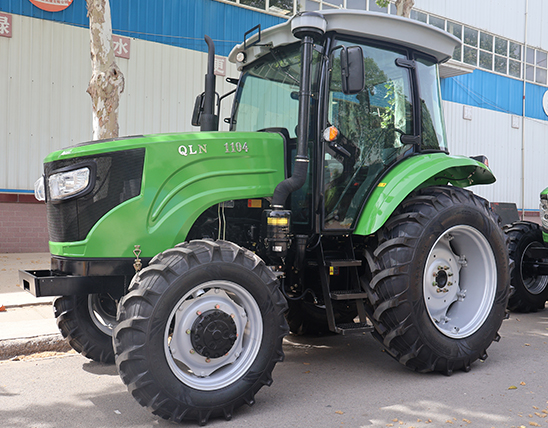

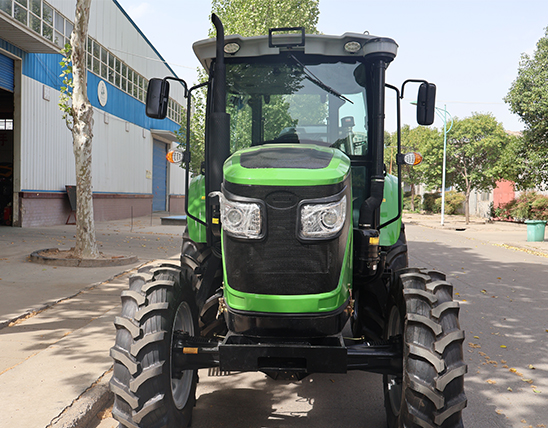

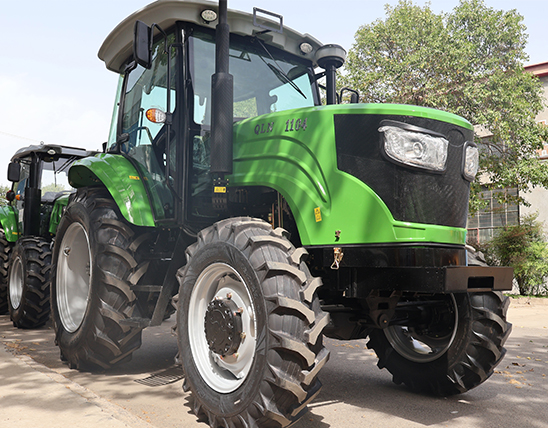

| Model | QLN-1100 | QLN-1104 | ||
| Engine | Rated power(kw) | 81 | ||
| Type | Water-cooled, in-line, four-stroke, direct injection | |||
| Rotation speed(r/min) | 2300 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 3560 | 3800 | ||
| Overall dimension(mm) | 4280*2085*2925 | |||
| Wheel tread(mm) | Front wheel | 1520 | 1610 | |
| Rear wheel | 1620 | |||
| Wheelbase(mm) | 2195 | |||
| Minimum ground clearance(mm) | 450 | 370 | ||
| Gearbox | 16F+8R | |||
| Tire | Front tire | 6.5-20 | 12.4-24 | |
| Rear tire | 16.9-34 | |||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 760/1000 | ||
| (optional 540/760,540/1000,760/850) | ||||
| Max lifting Force at 610mm (KN) | 19.5 | |||

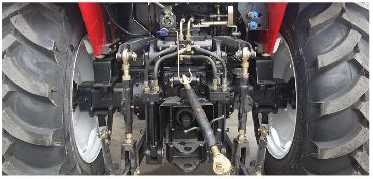

| Suspension type | CategoryⅡ3-point linkage | |||
-

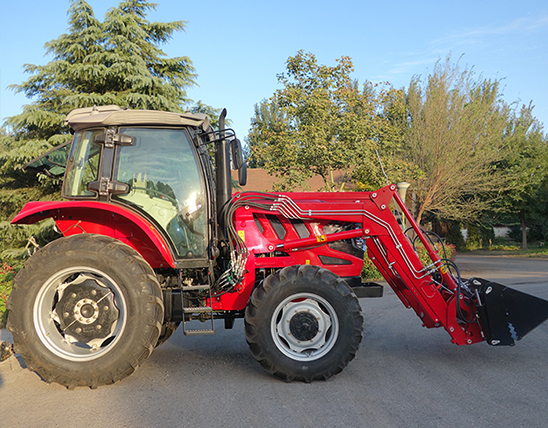

Chalion 90HP/56.3KW Wheeled Tractor
