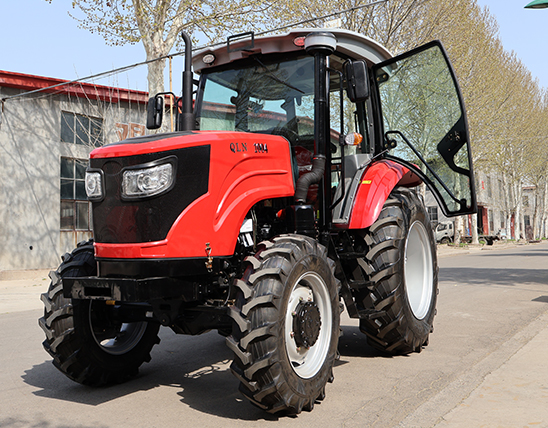

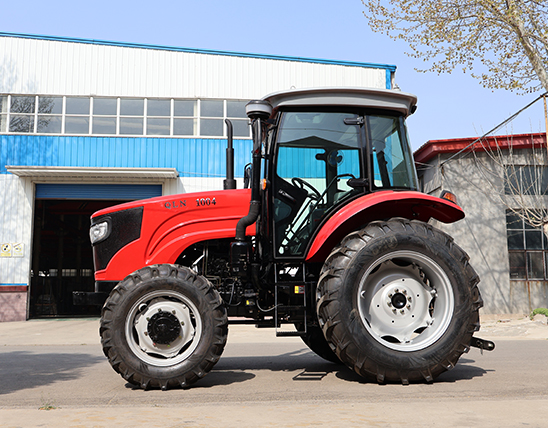

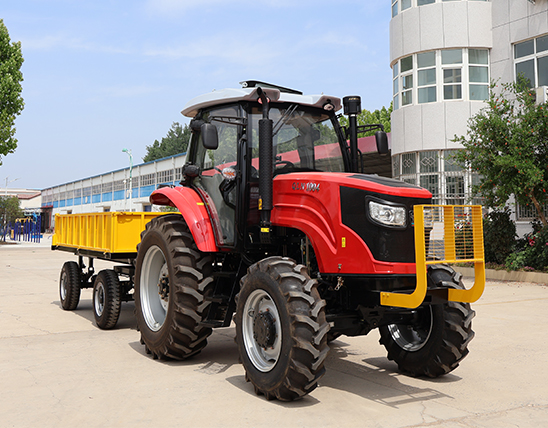

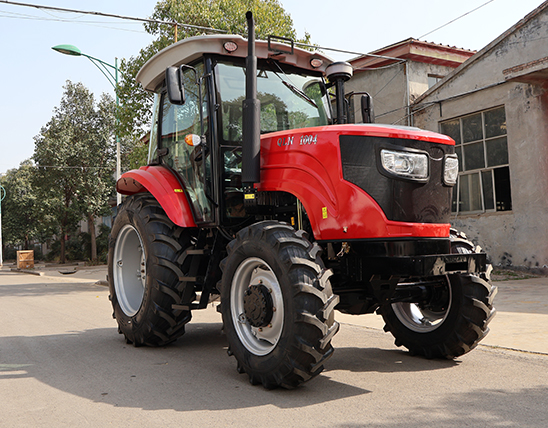

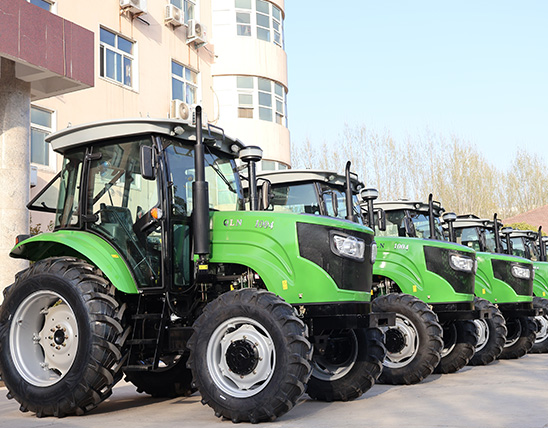

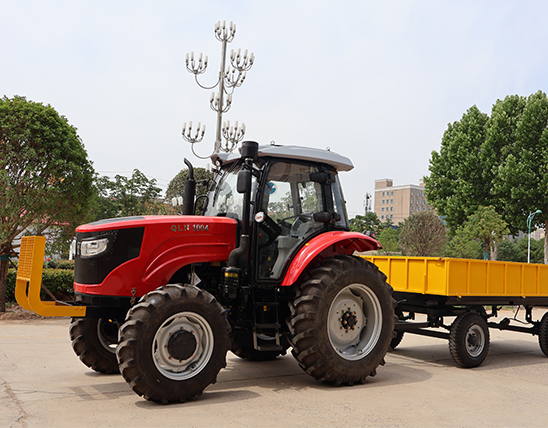

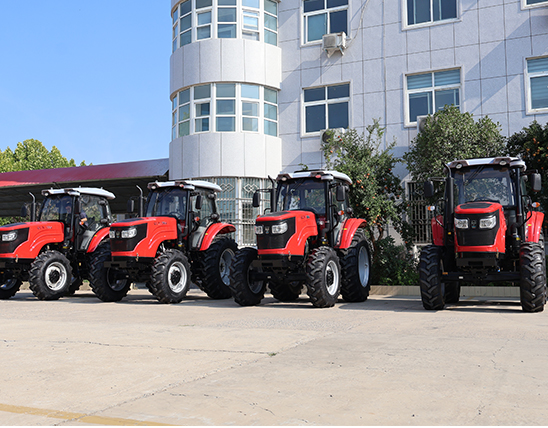

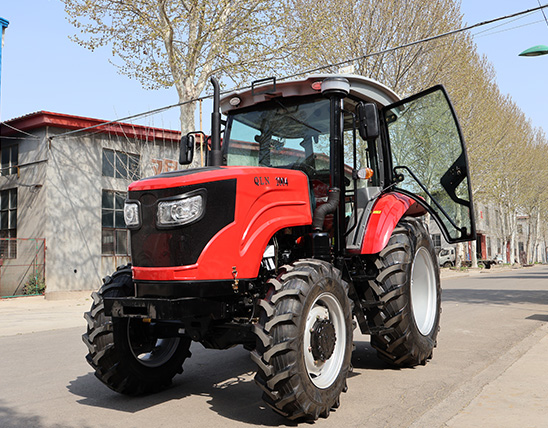

Chalion QK Series 100HP Wheeled Tractor
This Chalion QK Series 100HP Wheeled Tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Description
This Chalion QK Series 100HP Wheeled Tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Products Advantage
-
Matched to YUCHAI turbocharger engine/YTO naturally aspirated engine with strong power, high fuel efficiency and large torque coefficient；
+ -
Front axle is used on the tractor having high carrying capacity and clearance; double steering cylinders make the steering more flexible；
+ -
12/13-inch independentoperation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity；
+ -
540/760,540/1000,760/850 and 760/1000 optional for PTO speed and applicable to various machine deployment;
+ -
Adopting side-mounted control mechanism and collar shift, transmission gears of F16+R8, crawler of F16+R8, proper speed matching, strong agricultural applicability, high work efficiency, and high fuel economy；
+ -
Comprehensive force/position control lifter for easy and convenient operation; strong pressure device lifter with up to 2500 kg of max lifting force at the suspension point for the best rotary tillage and ploughing effect.
+
Products Parameters
| 100HP | ||||
|---|---|---|---|---|
| Model | QLN-1002 | QLN-1004 | ||
| Engine | Rated power(kw) | 73.5 | ||
| Type | Water-cooled, in-line, four stroke, direct injection | |||
| Rotation speed(r/min) | 2300 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 3560 | 3800 | ||
| Overall dimension(mm) | 4280*2085*2925 | |||
| Wheel tread(mm) | Front wheel | 1520 | 1610 | |
| Rear wheel | 1620 | |||
| Wheelbase(mm) | 2195 | |||
| Minimum ground clearance(mm) | 450 | 370 | ||
| Gearbox | 16F+8R | |||
| Tire | Front tire | 6.5-20 | 11.2-24 | |
| Rear tire | 16.9-34 | |||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 760/1000 | ||
| (optional 540/760,540/1000,760/850) | ||||
| Max lifting force(KN) | 15 | |||
| Suspension type | CategoryⅡ3-point linkage | |||
-
Chalion QP Series 180HP Wheeled Tractor
QP series tractor (QLN-1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.
Learn More -
Chalion QG Series 200HP Wheeled Tractor
QG series(QLN-2004) equipped with Weichai brand 6 cylinders diesel engine, with turbocharger and intercooling system, gearbox 16F+16R with synchronizer shift, high torque output with low fuel consumption, support three pairs hydraulic output, can provide strong power to the heavy implements.
Learn More -
Chalion QC Series 210HP Wheeled Tractor
This 210hp tractor is belong to our QC series tractor, it is with YTO engine, and Germany LUK 14-inch double-acting clutch, And it torque is large and the transmission ability is strong. and for this tractor clutch, we use Hydraulic boost clutch, it is easy for operator to operate
Learn More -

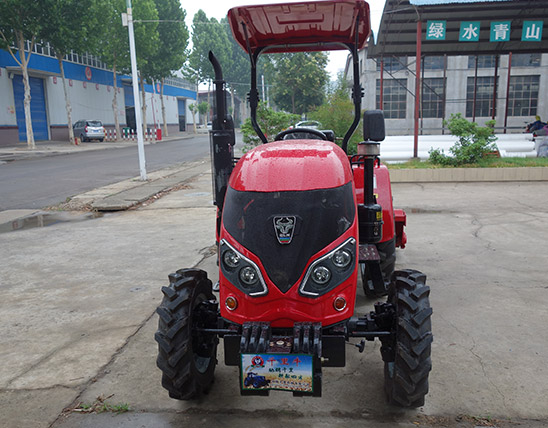

Chalion QY Series(25-40hp) Wheeled Tractor
