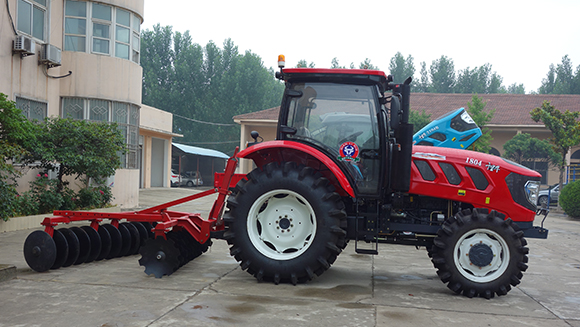

Chalion QC Series 180HP QLN-1804 Wheeled Tractor
This 180HP farm tractor uses YTO engine and F16+R8 gear, large chassis, compact structure, strong power and easy operation, bringing you efficient agricultural work.
Products Description
This 180HP farm tractor uses YTO engine and F16+R8 gear, large chassis, compact structure, strong power and easy operation, bringing you efficient agricultural work.
Products Advantage
-
Equipped with Weichai Power variable frequency common rail engine, strong power, optimized adjustment of engine curve, lower fuel consumption.t of engine curve, lower fuel consumption.
+ -
Optional German LUK clutch, high reliability; universal joint four-wheel-drive front driveshaft, large transmission torque; hydraulic system independent oil, high cleanliness, low failure rate.
+ -
Using 16F+8R meshing shuttle type gear shift, reasonable speed matching, good working adaptability, optional crawler gear.
+ -
240 liters of double under-mounted fuel tanks, long continuous operation time, and high operating efficiency. Full hydraulic steering system, easy to drive, flexible steering, front and rear adjustable steering wheel, more comfortable.
+ -
Upgraded luxurious air-conditioned cab with new interior, new streamlined hood, more beautiful and more comfortable.
+ -
Double pressure hydraulic lifter, equipped with 325/328 gear pump; 3 sets of hydraulic multi-way valves are provided to meet the power requirements of various machines.
+
Products Parameters
| 180HP | |||
|---|---|---|---|
| Model | QLN-1804 | ||
| Engine | Rated power(kw) | 132.4 | |
| Type | Direct-injection, water-cooled 6-cylinders diesel engine | ||
| Rotation speed(r/min) | 2200 | ||
| Dimension | Wheel drive | 4*4 | |
| Minimum using weight (kg) | 5700 | ||
| Overall dimension(mm) | 5150*2345*2920 | ||
| Wheel tread(mm) | Front wheel | 1850-1966 | |
| Rear wheel | 1870-1996 | ||
| Wheelbase(mm) | 2660 | ||
| Minimum ground clearance(mm) | 480 | ||
| Gearbox | 16F+8R | ||
| Tire | Front tire | 14.9-28（13.6-24/18.4-34） | |
| Rear tire | 18.4一38（14.9-26/18.4-34） | ||
| Steering type | Hydraulic power steering | ||
| Working device | PTO shaft speed (r/min) | 760/850 | |
| Max lifting force(KN) | 31.8 | ||
| Suspension type | 3 Point linkage（CAT.3,Draft,position adjustable and Floating control） | ||
-
