Chalion QB Series 90HP Wheeled Tractor
QB series 90HP Wheeled Tractor belongs to middle horsepower, adopts YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gearbox, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Products Description
QB series 90HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Products Use
Hot Sale Chalion 90 HP Tractor Agriculture Small 4x4 Compact Tractor With Loader And Backhoe Agricultural Tools Price.
Products Advantage
-

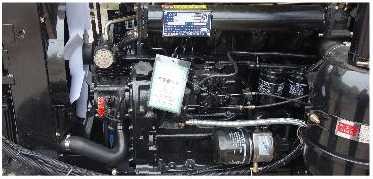

YTO Excellent four-cylinder direct injection diesel engine with high fuel efficiency and high torque output;
+ -

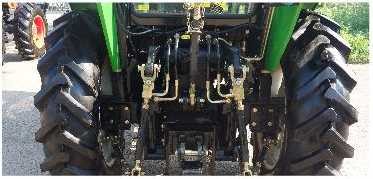

Hydraulic lifting device adopts force adjustment, position adjustment and individual control of force and position;
+ -

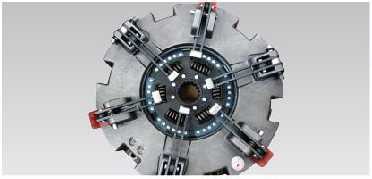

Dual action 10/11-inch clutch for easy control, and reliable performance; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost;
+ -

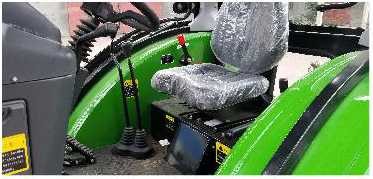

12F+12R shuttle -type gear shifting with quick forward and reverse has a variety of gear selections, and a reasonable velocity distribution;
+ -

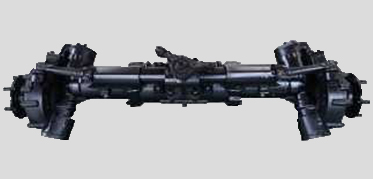

The four-wheel-drive model uses a new front axle, which can provide reliable steering performance in harsh and paddy environments with double steering cylinders and great waterproofness.Meanwhile, it has a minimum turning radius of 3.3m to help you operate easily in small spaces；
+ -

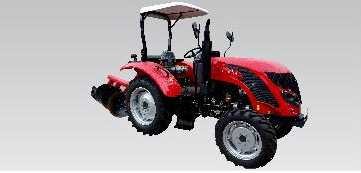

Beautiful and elegant, new generation streamlined shield, which meets the performance requirements of safety, anti-dust, noise reduction and cooling perfectly.
+
Products Parameters
| 90HP | ||||
|---|---|---|---|---|
|
Model |
QLN-900 |
QLN-904 |
||
|
Engine |
Rated power(kW) |
66.2 |
||
|
Type |
Water-cooled, in-line, four-stroke, direct injection |
|||
|
Rotation speed(r/min) |
2300 |
|||
|
Dimension |
Wheel drive |
2WD |
4WD |
|
|
Minimum using weight (kg) |
3075 |
3200 |
||
|
Overall dimension(mm) |
4285*1915*2750 |
|||
|
Wheel tread(mm) |
Front wheel |
1400 |
1460 |
|
|
Rear wheel |
1530 |
|||
|
Wheelbase(mm) |
2273 |
2300 |
||
|
Minimum ground clearance(mm) |
430 |
340 |
||
|
Gearbox |
12F+12R |
|||
|
Tire |
Front tire |
6.5-20 |
8.3-24 |
|
|
Rear tire |
14.9-30 |
|||
|
Steering type |
Hydraulic power steering |
|||
|
Working device |
PTO shaft speed (r/min) |
540/760 |
||
|
Lift capacity at 610mm behind lift ends(KN) |
20 |
|||
|
Suspension type |
CategoryⅡ3-point linkage |
|||
