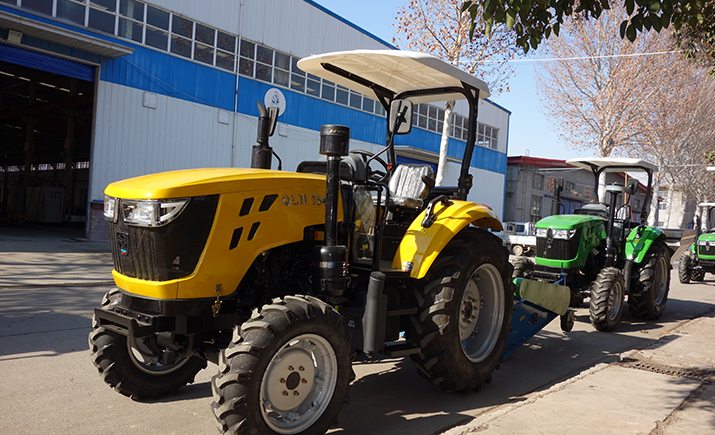

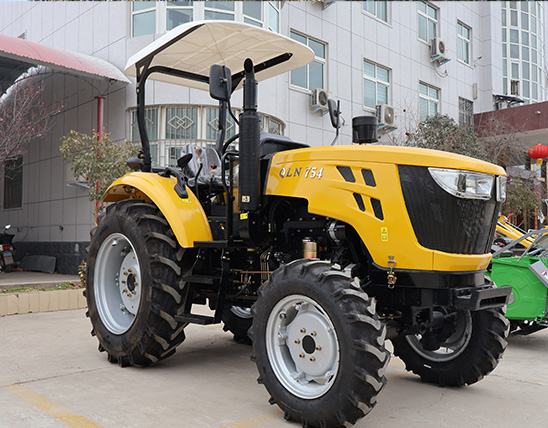

Chalion QB Series 75HP Wheeled Tractor
Chalion QB Series 75HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Products Description
Chalion QB Series 75HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Products Use
For this middle horse power tractor mostly use in middle size farm, And also it can use at some of the Mechanical engineering.
Products Advantage
-
YTO/YUCHAI Excellent four-cylinder direct injection diesel engine with high fuel efficiency and high torque output;
+ -

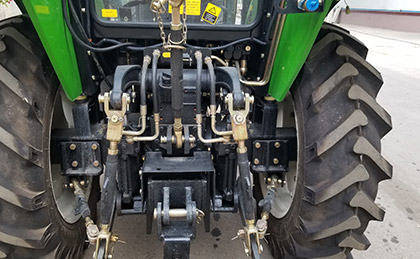

Hydraulic lifting device adopts force adjustment, position adjustment and individual control of force and position;
+ -
Dual action 11 -inch clutch for easy control, and reliable performance; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost;
+ -
12F+12R shuttle -type gear shifting with quick forward and reverse has a variety of gear selections, and a reasonable velocity distribution;
+ -
New front axle is used on the four-wheel- drive model, which can provide you reliable steering performance in harsh and paddy environments with double steering cylinder and great water proofness.Meanwhile, it has a minimum turning radius of 3.3m to help you operate easily in small spaces；
+ -
Beautiful and elegant, new generation streamline shield, which meets the performance requirements of safety, anti-dust, noise reduction and cooling perfect.
+
Products Parameters
| 75HP | ||||
|---|---|---|---|---|
| Model | QLN-750 | QLN-754 | ||
| Engine | Rated power(kw) | 55.14 | ||
| Type | Water-cooled, in-line, four stroke, direct injection | |||
| Rotation speed(r/min) | 2400 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 2120 | 2360 | ||
| Overall dimension(mm) | 3980*1635*2400 | |||
| Wheel tread(mm) | Front wheel | 1300 | ||
| Rear wheel | 1300 | |||
| Wheelbase(mm) | 2010 | 2040 | ||
| Minimum ground clearance(mm) | 325 | |||
| Gearbox | 12F+12R | |||
| Tire | Front tire | 6.00-16 | 8.3-20 | |
| Rear tire | 12.4-28 | 12.4-28 | ||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 540/760 | ||
| Max lifting force(KN) | 12.4 | |||
| Suspension type | CategoryⅠ3-point linkage | |||
-
Chalion LW Series Backhoe
Frond End and Backhoe is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
Learn More -

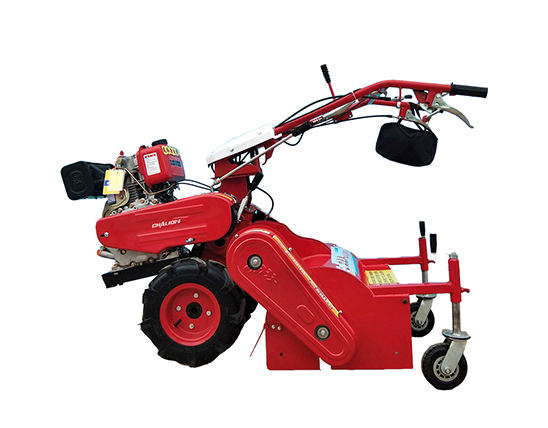

Chalion 186F Power Tiller
