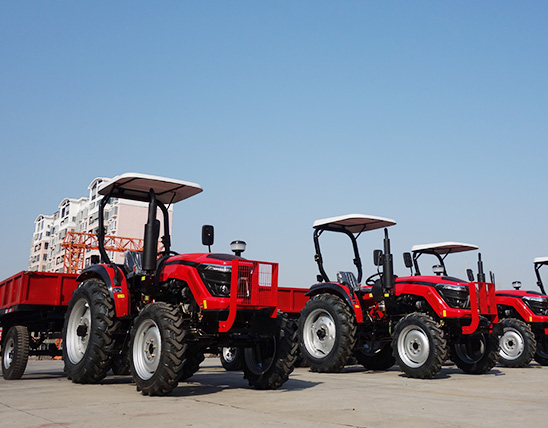

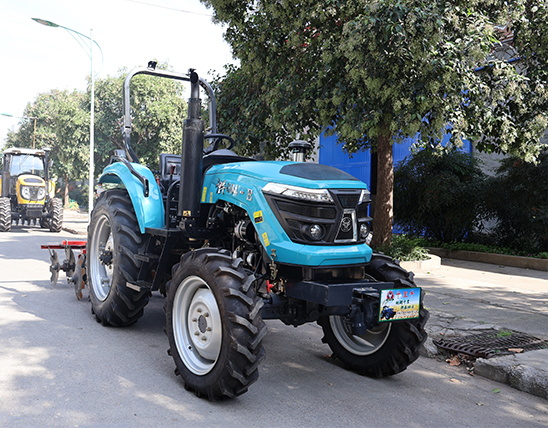

Chalion QA Series 60HP Wheeled Tractor

1) This Chalion QA Series 60HP Wheeled Tractor is suitable for market demand at home and abroad;

2) F8+R8/R2 shuttle shift, enhanced chassis;

3) These farm wheel tractors have reasonable gear distribution and are reliable in performance;

4) Low fuel consumption and large torque reserve, dynamic economy;

5) Frame-type cab, good sealing, driving safety and comfort;

6) Multi-power output, good match with farm implements to meet the multiple requirements.

info@qln-tractor.com 8618236900192
Send Email Inquiry Now
Product Description Product Parameters Related Products

Products Description

This Chalion QA Series 60HP Wheeled Tractor suitable for market demand at home and abroad, F8+R8 shuttle shift, enhanced chassis.



Products Use

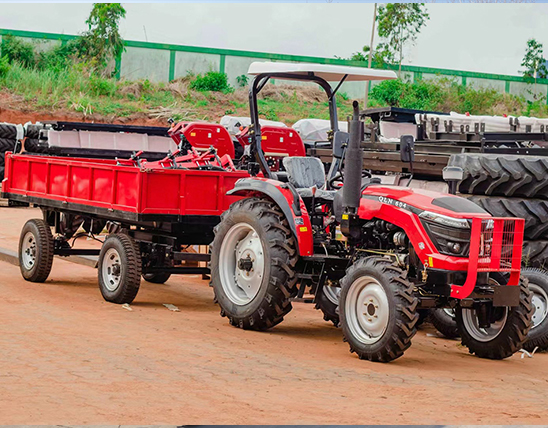

Tractor for Farm usage. Equipped with various farm implements to help you do farm work, such as ploughing, planting, cultivating, etc.


Products Advantage

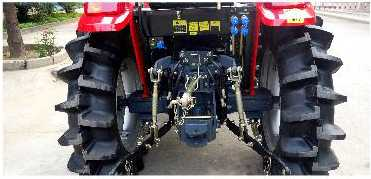

  • Equipped with international standard NTP 1/2 hydraulic output connectors, 1/2 way multi-valve and hydraulic pump with output flow of 35 l/m;

    +

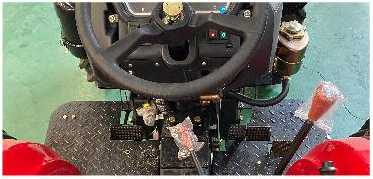

  • The gear configurations of F8+R8/R2 makes that the velocity distribution is reasonable to meet different operating needs;

    +

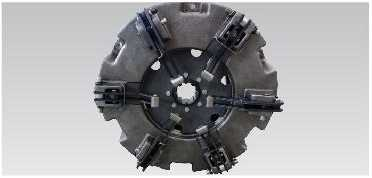

  • Optional single/double-acting clutches for different needs and operation; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost.

    +

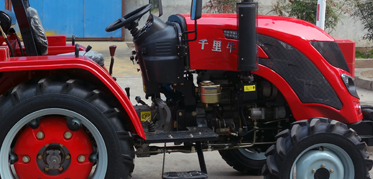

  • Center console with simple structure, high cost efficiency and easy maintenance and an external differential lock is easy for maintenance;

    +

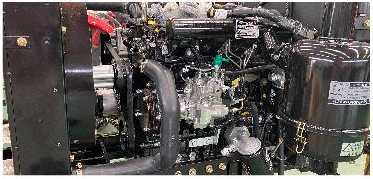

  • Powered by 4-cylinders direct injection Laidong/Jiangdong engine, energy-saving, environmental protection, good stability and more advanced technology.

    +

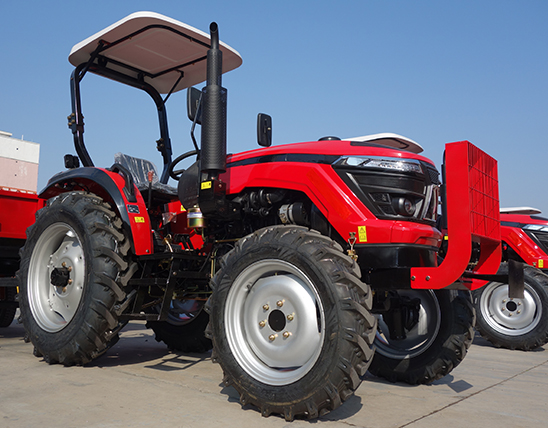

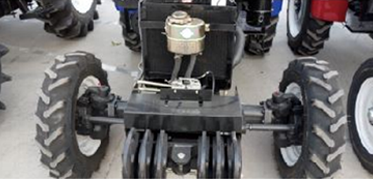

  • New designed front axle is adopted on 4WD tractor, mid hydraulic cylinder makes the structure easier and more reliable.The tie rod is canceled to provide higher clearance and better passing ability.

    +

Products Parameters

60HP

Model

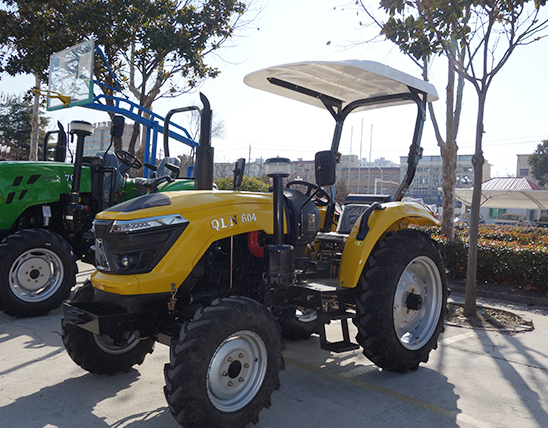

QLN-604

Engine

Rated power(kw)

44.1

Type

Vertical four-cylinder, direct injection, four-stroke, water-cooled

Rotation speed(r/min)

2300

Dimension

Wheel drive

4WD

Minimum

1625

using weight (kg)

Overall dimension(mm)

3540*1560*2340

Wheel tread(mm)

Front wheel

1230

Rear wheel

1110-1400

Wheelbase(mm)

1820

Minimum ground clearance(mm)

280（lower edge of front drive axle）

Gearbox

8F+8R/2R shuttle shift

Tire

Front tire

7.50-16

Rear tire

11.2-28

Steering type

Hydraulic power steering

Working device

PTO shaft speed (r/min)

540/720 or 540/1000

Max lifting force(KN)

11.3

Suspension type

CategoryⅠ3-point linkage
