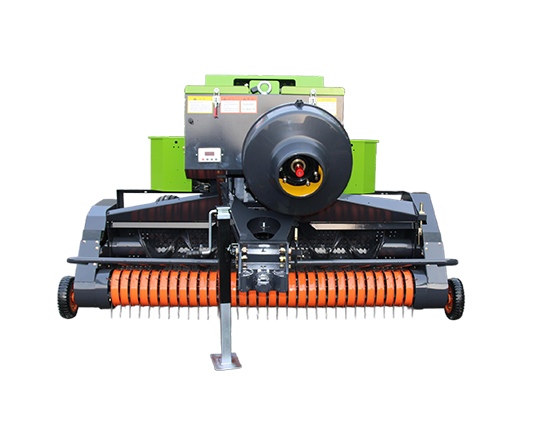

Chalion Hay Baler
9YF series square baler is a forage bundling and harvesting machine mainly used for harvesting various forages, rice, wheat, and other crop straws in the field. It can automatically pick up the grass and straw cut in the field, and bundle the scattered straw into rectangular bales with neat and regular shape through the operation procedures of conveying, feeding, compression forming, and tying rope.
Products Advantage
9YF series square baler is a forage bundling and harvesting machine, which is mainly used for harvesting various forages, rice, wheat and other crop straws in the field. It can automatically pick up the grass and straw cutted in the field, and bundle the scattered straw into rectangular bales with neat and regular shape through the operation procedures of conveying, feeding, compression forming and tying rope.
Products Parameters
| Chalion Main performance and technical specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Model |
9YF-1.9 |
||||||||||||
|
Overall dimension(mm) |
4600×2530×1730 |
||||||||||||
|
Weight(kg) |
1630 |
||||||||||||
|
Collecting width(mm) |
1900 |
||||||||||||
|
Matched tractor horsepower |
Above 50hp |
||||||||||||
|
Connection type with tractor |
Three point linkage |
||||||||||||
|
Traction mode |
Mid-mounted |
||||||||||||
|
PTO speed(r/min) |
540 |
||||||||||||
|
Knotter number(unit) |
2 |
||||||||||||
|
Compress chamber section size |
446*364 |
||||||||||||
|
Bale length(mm) |
500-1350 |
||||||||||||
|
Bale density(mm |
Adjustable spring loading |
||||||||||||
|
Productivity(Mu/hour) |
10-20 |
||||||||||||
|
Main configuration |
|
||||||||||||
|
Protective cover |
Injection Moulding |
||||||||||||
|
Knotter type |
Rasspe Germany high strength D shape |
||||||||||||
|
Pickup tine |
Four rows |
||||||||||||
|
Fork type |
Adopts 八 shape pitchfork |
||||||||||||
|
Bale damping mechanism |
Both side |
||||||||||||
|
Density adjustment mode of bale density |
Adjustable spring loading |
||||||||||||
|
Compression chamber type |
Extended compress chamber |
||||||||||||
|
Main chain, baling mechanism chain |
16A. 12A |
||||||||||||
|
Tire |
10-15 |
||||||||||||
-
