Chalion Garri Production Line
Garri is made from cassava, and the Garri production line mainly includes cassava washing, peeling, cassava crushing, cassava residue fermentation, cassava residue dehydration, cassava flour cake grinding, cassava flour frying, and other processes. The Gari cassava flour production line has stable structure, convenient operation and maintenance, and large output.
Products Description
Garri is made from cassava, and the Garri production line mainly includes cassava washing, peeling, cassava crushing, cassava residue fermentation, cassava residue dehydration, cassava flour cake grinding, cassava flour frying, and other processes. The Gari cassava flour production line has stable structure, convenient operation and maintenance, and large output.
Products Advantage
The cassava peeling machine is one of the key cassava processing equipment in the process. The higher the peeling rate of cassava, the less impurities it contains in subsequent processing, and the better the taste of the finished cassava. A high-quality cassava peeling machine can almost completely remove the cassava peel. QLN cassava peeling machine adopts advanced and unique technology, and the peeling rate can reach more than 95%.
Products Parameters
| Chalion Garri Production Line | |||
|---|---|---|---|
|
NO. |
Machine |
Specification & Function |
|
|
1 |
Feeding hopper |
Material: Carbon steel Function: For short storage of raw cassava. |
|
|
2 |
Belt conveyor |
Power: 3kw Material: Carbon steel Function: Transport cassava from hopper to dry sieve machine. |
|
|
3 |

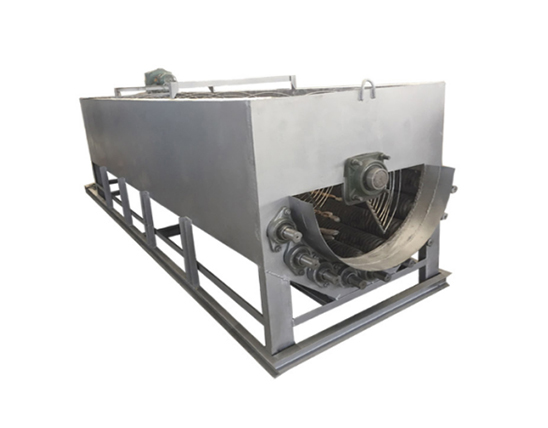

Paddle washing |
Material: CS Length:5000mm*700mm*1450mm Power:4 kw Capacity: 1~2ton per hour Washing cassava tubers |
|
|
4 |
Cassava peeling machine |
Material: SS304 Capacity: 1.0t/h Power: 3+1.1kw Size: 2600*1200*1300mm Weight: 1200kg Peeling and washing cassava tubers, high peeling rate, peeled cassava surface is clearly and smoothly |
|
|
5 |

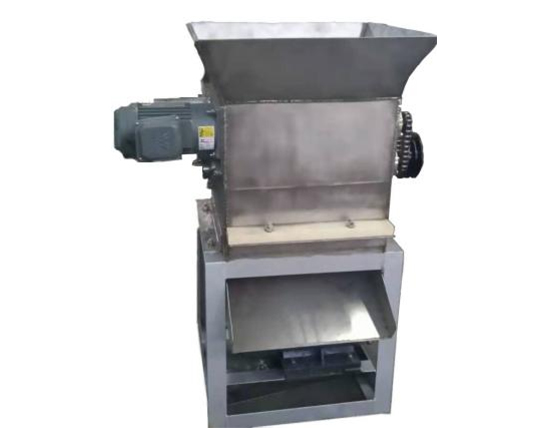

Grating machine |
Material: SS304 Capacity: 1.0-1.5t/h Power: 5.5kw Size: 900*650*1200mm Weight: 300kg Grating cassava into cassava mash. |
|
|
6 |
Hydraulic press |
Material: SS304 Capacity: 400kg/h Power: 3kw Barrel diameter: 550mm Used for liquid cassava flour / fermented cassava mash dewatering, automatic working, save labor and time. |
|
|
7 |
Garri fryer |
Material: SS304 Capacity: 100-150kg/h output Power: 1.5kw Heating fuel: gas / diesel / electric Size: 2000*1300*1400mm Weight: 450kg Automatic mixing, for fermented cassava pulp frying to garri, during frying can add palm oil to produce yellow garri. |
|
|
8 |
Vibration sieve |
Material: SS304 Capacity: 500kg/h Power: 0.5kw Size: φ800mm Used for produced garri sieving, to get uniform fineness garri |
|
|
9 |
Package machine |
Material: SS304 Power: 2.2KW Weight: 300kg 1-5kg/bag |
|
|
10 |
Weighing scale and sewing machine |
For package 25kg/bag, or 50kg/bag |
|
|
11 |
Electrical control cabinet |
Used in workshop inside |
|
-
