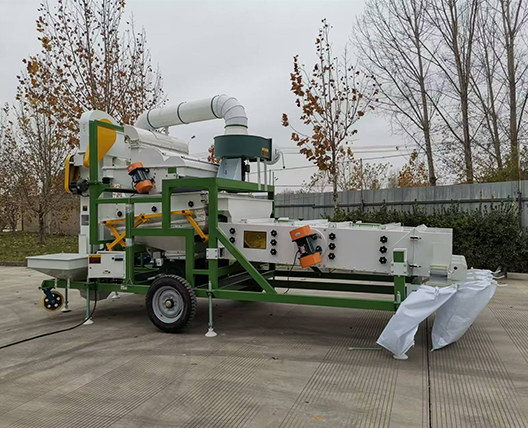

Chalion 5XFZ-10C2 Combination Seed Cleaner
The rice is fed into the de-awner and then transported to the horizontal air screen by a bucket elevator to remove light impurities such as dust, chaff, and shells from the rice. The light impurities are settled through the air duct and cyclone dust collector and discharged and collected by the air closer.
Products Description
The rice is fed into the de-awner and then transported to the horizontal air screen by a bucket elevator to remove light impurities such as dust, chaff, and shells from the rice. The light impurities are settled through the air duct and cyclone dust collector and discharged and collected by the air closer. Then they flow into the gravity table to remove other impurities with lighter bulk density such as blighted grains, sprouted grains, worm-eaten grains, moldy grains, etc. After air separation and gravity separation, the rice finally enters the vibrating screen, and through the sieve with customized hole size, the larger and smaller size impurities are removed.
Scope of application
The machine is suitable for processing various crops and all granular materials. It is especially effective in removing awns and selecting rice seeds.
Products Advantage
Complete functions: it integrates the functions of rice de-awning, air separation, gravity selection and screening (grading), with high purity of finished products.
Horizontal air suction screen: secondary suspension sedimentation separation, strong ability to remove light impurities, with high selection rate.
Air source of gravity table: double fan design, uniform air volume of table, convenient adjustment.
Large production rate: fast processing speed, short cycle, high efficiency. It is especially suitable for buyers and processors and rice seed enterprises;
Green environmental protection: equipped with cyclone dust removal system, it can discharge dust and light impurities after sedimentation, with low pollution.
Products Parameters
| Main performance and technical specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | 5XFZ-10C2 | |||||||||||||
| Productivity | Rice | 3-4 t/h | ||||||||||||
| Exterior size（mm) | 6000×2350×3560 | |||||||||||||
| Area of sieve surface | Sieve box (LxW) | 2400×1500×3 layers | ||||||||||||
| (mm) | Gravity（LxW) | 2200×1600 | ||||||||||||
| Weight of the total machine | ≈3500 Kg | |||||||||||||
| Total power | 23.7 kW | |||||||||||||
| Remarks | Front rice de-awner | |||||||||||||
-

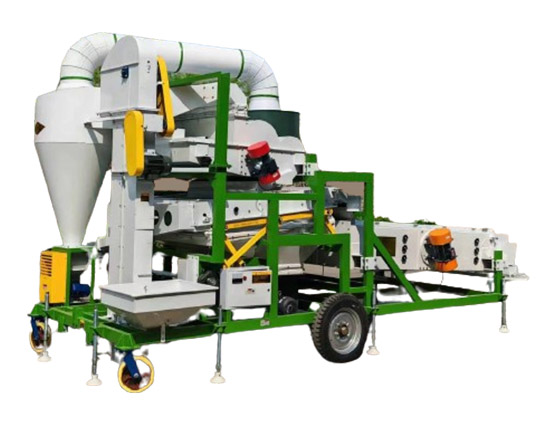

Chalion 5XFZ-10 Combination Seed Cleaner
