Chalion 5XFZ-10C1 Combination Seed Cleaner
The wheat is fed into the huller, and the hulled wheat is transported to the horizontal air screen by a bucket elevator to remove light impurities such as dust and chaff from the wheat.
Products Description
The wheat is fed into the huller, and the hulled wheat is transported to the horizontal air screen by a bucket elevator to remove light impurities such as dust and chaff from the wheat. The light impurities are settled by the air duct and the cyclone dust collector, and then discharged by the air closer. Then the wheat flows into the gravity table to remove other impurities with lighter bulk density such as knotweed, moldy grains, blighted grains, sprouted grains, and worm-eaten grains. After air separation and gravity separation, the grain finally enters the vibrating screen, and through the sieve with customized hole size, the larger and smaller size impurities are removed.
Scope of application
The machine is suitable for processing various crops and all granular materials. Especially for materials such as wheat and sorghum, the shelling and selection effects are better.
Products Advantage
Complete functions: it integrates the functions of wheat hulling, air separation, gravity selection and screening (grading), with high purity of finished products.
Horizontal air suction screen: secondary suspension sedimentation separation, strong ability to remove light impurities, with high selection rate.
Air source of gravity table: double fan design, uniform air volume of table, convenient adjustment.
Large production rate: fast processing speed, short cycle, high efficiency. It is especially suitable for wheat buyers and processors, speculation enterprises and wheat seed enterprises;
Green environmental protection: equipped with cyclone dust removal system, it can discharge dust and light impurities after sedimentation, with low pollution;
Products Parameters
| Main performance and technical specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | 5XFZ-10C1 | |||||||||||||
| Productivity | Seed selection | 6-8 t/h | ||||||||||||
| Grain cleaning | 8-10 t/h | |||||||||||||
| Exterior size（mm) | 6000×2350×3560 | |||||||||||||
| Area of sieve surface | Sieve box (LxW) | 2400×1500×3 layers | ||||||||||||
| (mm) | Gravity（LxW) | 2200×1600 | ||||||||||||
| Weight of the total machine | ≈3500 Kg | |||||||||||||
| Total power | 23.7 kW | |||||||||||||
| Remarks | Front wheat huller | |||||||||||||
-
Chalion 5XFZ-10 Combination Seed Cleaner
QLN Combination Seed Cleaner has complete functions, large output, and is environmentally friendly. It can be equipped with a rice awn remover or a wheat huller according to user requirements.
Learn More -
Chalion 5S Combination Seed Cleaner
This type of combination seed cleaner integrates hulling/de-awning , elevator, double air aspiration, dust removing, and dual gravity table into one.
Learn More -
Chalion Series Gravity De-stoner
The machine removes heavy impurities such as stones, earth, small mud and so on in the material according to the gravity difference of the material.
Learn More -
Rice Milling Machine
The Rice Mill Machine can shell rice and grind bean and corn. whiteness the rice and separate the whole rice from the broken one. Shelling rate is over 90%. Blade-free rice mill machine, equipped with stainless steel screen, with partial metal housing, the disposable wear-resistant reaches to 8,000kg or more, keeping whole rice grain; the supporting power is 2.2kW, with capacity of 120-180kg/h, rice sieve mesh size is 1.2mm, the hopper can be loaded with 15-20kg of rice, which is applicable to rice, millet, corn, soybeans, etc., can be equipped with 170F, 168F gasoline engine or air-cooled diesel engine.
Learn More -
Chalion Positive Gravity Separator
The gravity separator is a key tool for processing seed and agricultural byproducts and it can be used for the processing and selection of many kinds of dry particle materials.
Learn More -

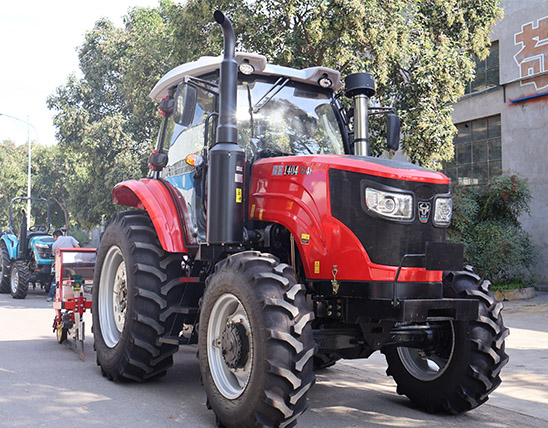

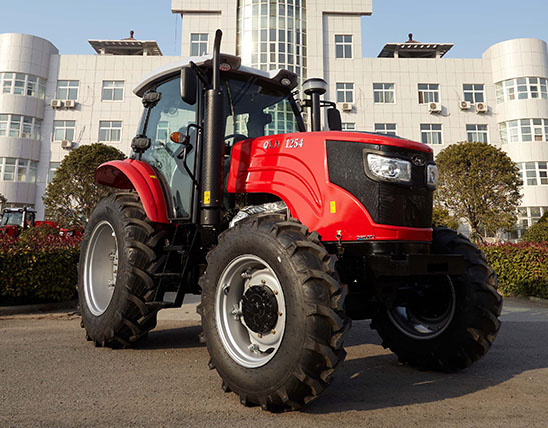

Chalion QK Series 140HP Wheeled Tractor
