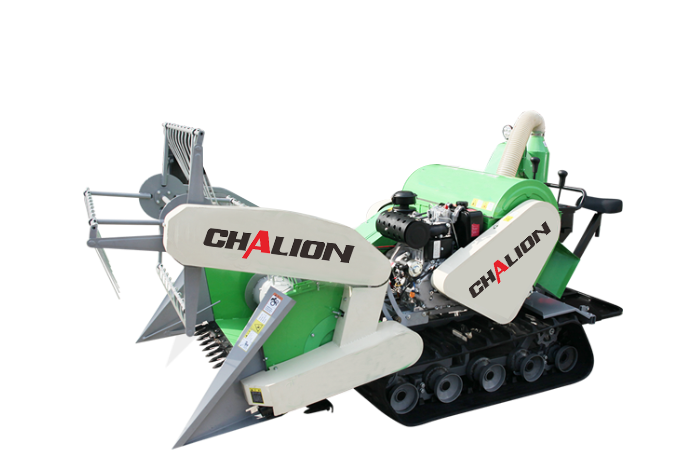

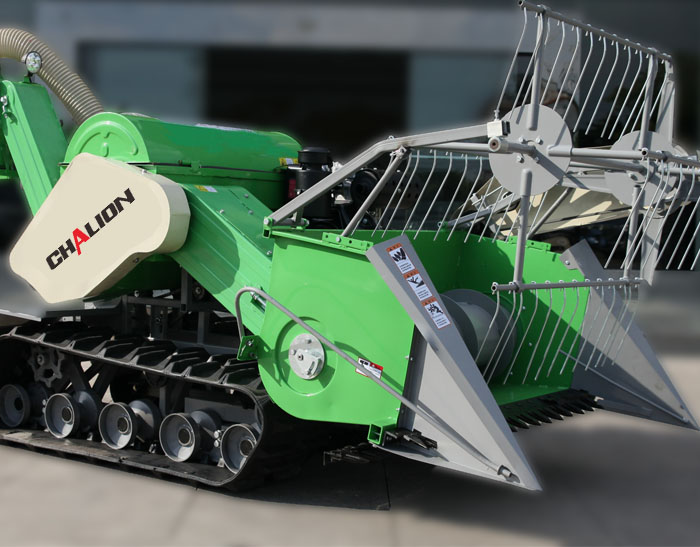

Chalion 4LZ-1.1 Mini Rice Harvester
4LZ-1.1 mini rice harvester is a crawler-riding rice and wheat combine harvester. Widened header increases hourly feed and work efficiency. Multiple gears can be switched freely.
ProductsDescription
4LZ-1.1 mini rice harvester is a crawler-riding rice and wheat combine harvester. Widened header increases hourly feed and work efficiency. Multiple gears can be switched freely.
ProductsAdvantage
Heightened feed roller baffle to reduce spilling The header is lowered by 8 cm, making it easy to harvest dwarf rice Feeding conveyor trough hinge structure to avoid regurgitation and conveying jamming
High horsepower, more fuel-efficient, more durable, diesel engine harvesting, threshing, walking more efficient
Low grass discharge design, smoother grass discharge Gradient design of the threshing drum, threshing does not jam Progressive grid screens reduce spilling and lower impurity content
Products Parameters
| Main performance and technical specifications | |||
|---|---|---|---|
|
Model Name |
4LZ-1.1 type mini harvester |
||
|
Structure type |
Crawler riding |
||
|
Dimensions in working state(mm) |
3300×1500×1550 |
||
|
Machine quality(kg) |
630 |
||
|
Header working width(mm) |
1140 |
||
|
Minimum ground clearance(mm) |
200 |
||
|
average ground pressure(kP)a |
8.4 |
||
|
Rated feed(kg/s) |
1.1 |
||
|
Gearbox |
Forward gear, reverse gear, walking gear, fast-receiving gear, neutral gear, slow-receiving gear |
||
|
Working speed(m/s) |
1.5～2.2 |
||
|
Working hour productivity(hm2/h) |
≥0.06 |
||
|
fuel consumption(kg/hm2) |
≤35 |
||
|
engine manufacturer |
/ |
||
|
Engine model name |
192FB diesel engine |
||
|
Engine structure |
Vertical, single cylinder, four stroke |
||
|
Engine power(KW) |
7.5 |
||
|
Engine calibration speed(r/min) |
3600 |
||
|
Engine cooling method |
air cooling |
||
|
Number of engine cylinders |
1 |
||
|
Engine starting method |
Electric start |
||
|
Type of engine fuel |
diesel fuel |
||
|
How to receive food |
Manual bagging of food |
||
|
Track type |
full track |
||
|
Track Specifications (Pitch × Number of Sections × Width) |
79mm×41 sections×360mm |
||
|
Track gauge(mm) |
690 |
||
-
