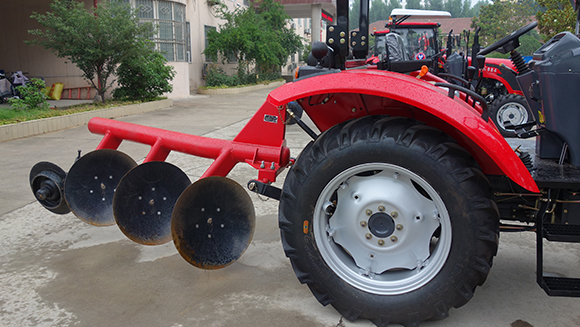

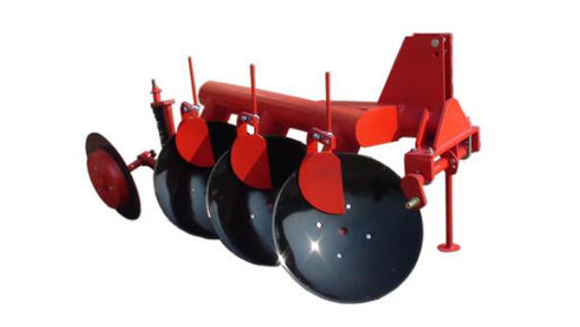

Chalion 1LYX Disc Plough
Chalion 1LYX Disc Plough can match to a 20-160hp farm tractor. The 1LYX Disc Plough is completely mounted with the tractor. During operation, the disc is rotating to turn the soil. Particularly, It is suitable for operation on the field with grasses. It is good at cutting grasses and straw and free from stopping by the grasses, soil or stones, etc. It is efficient in the work. It is easy to adjust and strong and durable.
Products Advantage
Chalion 1LYX Disc Plough can match to a 20-160hp farm tractor. The 1LYX Disc Plough is completely mounted with the tractor. During operation, the disc is rotating to turn the soil. Particularly, It is suitable for operation on the field with grasses. It is good at cutting grasses and straw and free from stopping by the grasses, soil or stones, etc. It is efficient in the work. It is easy to adjust and strong and durable.
Products Parameters
Chalion Main performance and technical specifications | |||||
---|---|---|---|---|---|
Type |
1LYX-230 |
1LYX-330 |
1LYX-430 |
1LYX-530 |
1LYX-630 |
Working width(mm) |
600 |
900 |
1200 |
1500 |
1800 |
Working depth(mm) |
250-300 |
||||
No. Of disc(pc) |
2 |
3 |
4 |
5 |
6 |
Dia of disc(mm) |
660/710 |
||||
Weight(kg) |
340 |
430 |
520 |
650 |
750 |
Linkage |
Three point linkage |
||||
Matched power(hp) |
40-50 |
60-80 |
80-100 |
100-120 |
120-160 |
