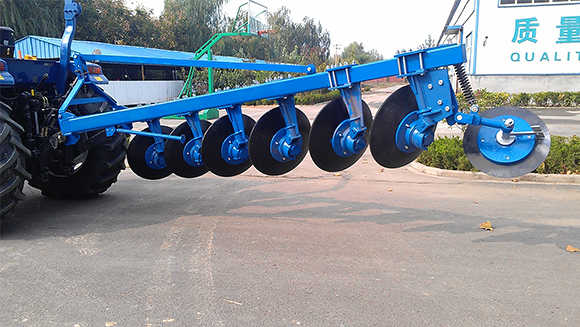

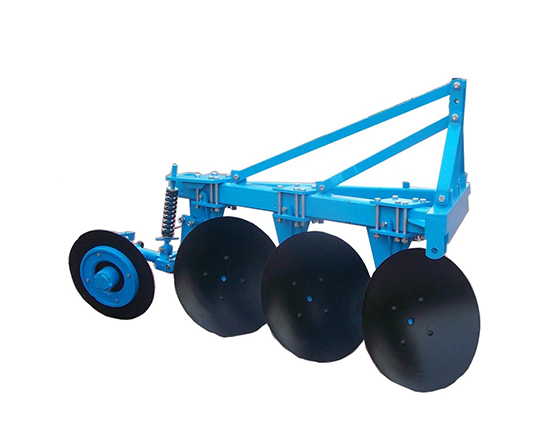

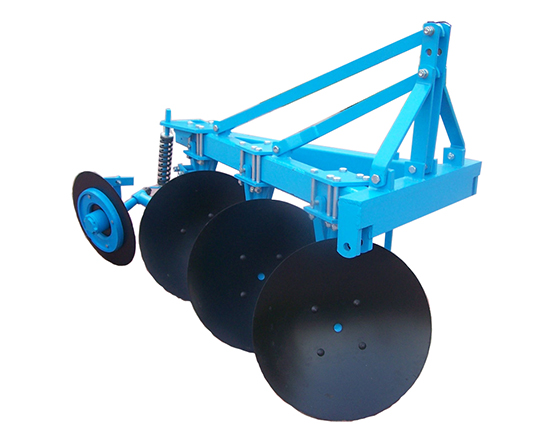

Chalion 1LYT Disc Plough
Chalion 1LYT Disc plough is suitable for plouging up the cultivated land as well as virgin land, especially for the green manure fields with stubs of rice or wheat. With the good performance of pillaging into the soil. It can satisfy agricultural requests. Moreover, the plough has the merits of less working resistance and is easy to operate and adjust, etc.
Products Advantage
The Chalion 1LYT Disc Plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning. It always match with farm tractors.
Products Parameters
| Chalion Main performance and technical specifications | |||||
|---|---|---|---|---|---|
|
Type |
1LYT-225J |
1LYT-325J |
1LYT-425J |
1LYT-525J |
1LYT-625J |
|
Working width(mm) |
500 |
750 |
1000 |
1250 |
1500 |
|
Working depth(mm) |
250-300 |
||||
|
No. Of disc(pc) |
2 |
3 |
4 |
5 |
6 |
|
Dia of disc(mm) |
660 |
660/710 |
|||
|
Weight(kg) |
350 |
500 |
600 |
700 |
800 |
|
Linkage |
Type II Three point linkage |
||||
|
Matched power(hp) |
35-50 |
60-80 |
80-100 |
90-120 |
120-160 |
-
