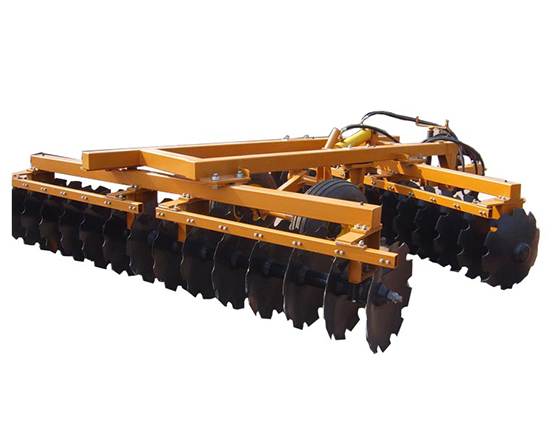

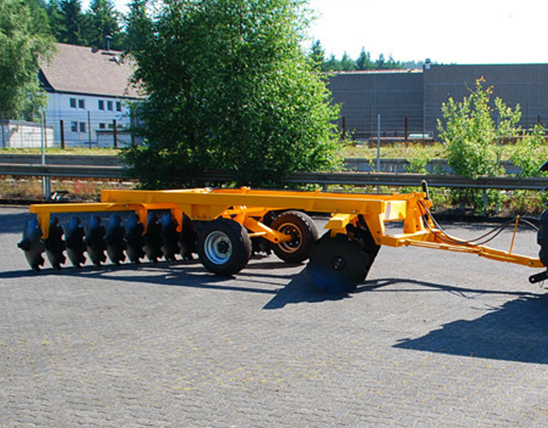

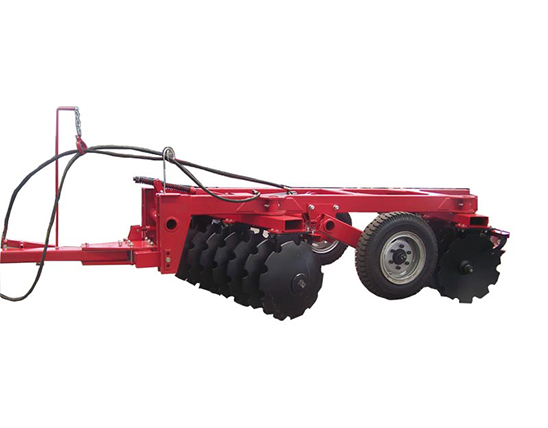

Chalion 1BZ Series Disc Harrow
Chalion 1BZ series disc harrow is hydraulic pressure offset heavy disc harrow, it has high working efficiency, strong capability into the soil, and after plough loosens the soil, this series can highly adapt to the sticky heavy soil, uncultivated field, and those plots of many weeds.
Chalion 1BZ series disc harrow is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and a small turning radius, thus the production efficiency and lifetime of the harrow are dramatically improved.
Products Advantage
A Disc harrow is special tillage equipment that is used for preparing the soil before planting crops. Purchase effective and powerful disc harrow from Chalion, can help your farmland more. Chalion Disc harrow is high quality and good service, cheap price.
Products Parameters
| Chalion Main performance and technical specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Type |
1BZ-1.6 |
1BZ-1.8 |
1BZ-2.0 |
1BZ-2.2 |
1BZ-2.5 |
1BZ-3.0 |
1BZ-3.4 |
1BZ-4.0 |
1BZ-4.4 |
||||
|
Working width(mm) |
1600 |
1800 |
2000 |
2200 |
2500 |
3000 |
3400 |
4000 |
4400 |
||||
|
Working depth(mm) |
200 |
||||||||||||
|
No.of disc(pc) |
14 |
16 |
18 |
20 |
24 |
28 |
32 |
36 |
40 |
||||
|
Dia. of disc(pc) |
660 |
||||||||||||
|
Weight(kg) |
1100 |
1200 |
1300 |
1350 |
1450 |
1550 |
1750 |
1950 |
2300 |
||||
|
Linkage |
Trailed |
||||||||||||
|
Matched power(hp) |
65-70 |
75 |
80-100 |
90-100 |
90-100 |
100-120 |
120-140 |
140-160 |
|||||
-
Chalion QK Series 90HP Wheeled Tractor
This Chalion QK Series 90HP Wheeled Tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More -
Chalion QK Series 110HP Wheeled Tractor
This series tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More -

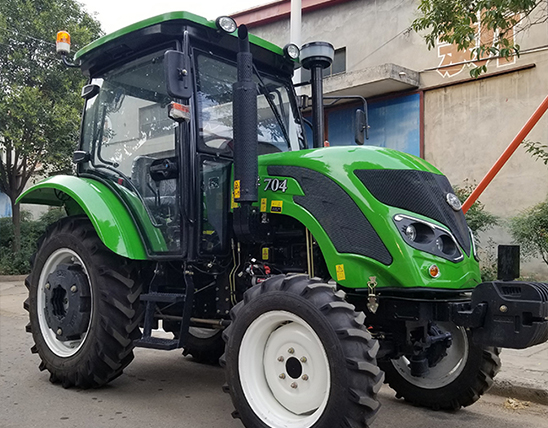

Chalion QB Series 70HP Wheeled Tractor
