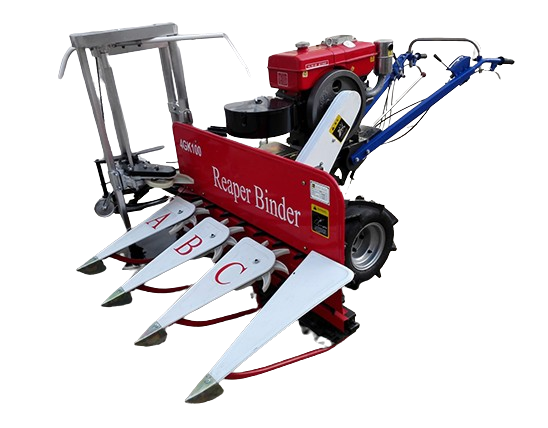

4GK Series Reaper Binder
4GK Reaper Binder is small, lightweight, has low fuel consumption, flexible maneuverability, easy to operate, labor-saving, and has less residue.
ProductsDescription
1. Usage: harvesting rice, wheat, sesame, soybean, forage, and other individual plant, widely used in the plains, hills, slopes, narrow fields, and other plots.
2. Features: small, hand-held, self-propelled.
3. Advantages: small size, light weight, low fuel consumption and flexible maneuverability, easy operation and effort, and low cut stubble.
4. Matching power: diesel engine or gasoline engine.
Products Parameters
| Main performance and technical specifications | |||
|---|---|---|---|
| Model | 4GK80 | 4GK100 | |
| Cutting width (mm) | 800 | 1000 | |
| Minimum cutting height (mm) | ≥50 | ≥50 | |
| Type of placement | Sidewise & Banded Placed | Sidewise & Banded Placed | |
| Productivity(m2/h) | 1400-2000 | 1700-2500 | |
| Engine | 5.15kw(8hp) | 5.15kw(8hp) | |
| Water cooling Diesel engine | Water cooling Diesel engine | ||
| Net weight (kg) | 240 | 290 | |
| Gross weight(kg) | 290 | 335 | |
| Dimension | 1.40*1.20*0.80 | 1.40*1.40*0.80 | |
| 40HQ/40GP | 18/16 | 18/16 | |
| 20GP | 8 | 8 | |
-
Rice Milling Machine
The Rice Mill Machine can shell rice and grind bean and corn. whiteness the rice and separate the whole rice from the broken one. Shelling rate is over 90%. Blade-free rice mill machine, equipped with stainless steel screen, with partial metal housing, the disposable wear-resistant reaches to 8,000kg or more, keeping whole rice grain; the supporting power is 2.2kW, with capacity of 120-180kg/h, rice sieve mesh size is 1.2mm, the hopper can be loaded with 15-20kg of rice, which is applicable to rice, millet, corn, soybeans, etc., can be equipped with 170F, 168F gasoline engine or air-cooled diesel engine.
Learn More -
Chalion 4LZ-0.6 Mini Rice Harvester
Chalion 4LZ-0.6 mini rice harvester is a full-feed self-propelled crawler-type small combine harvester, which can be used for rice and wheat harvesting in hilly areas. This machine uses a one-lever control for easy operation. High operating efficiency, using gasoline power, energy saving, and environmental protection.
Learn More -
Rice Transplanter
The Chalion brand walking rice transplanter is mainly for the rice planting, it suitable for small paddy field, it exported to West Africa, South-east Asian countries, for example, Nigeria, Ghana, Indonesia, Malaysia, Philippines and so on.
Learn More -
Combined Rice Milling Machine
The combined rice milling machine is composed of a new combined paddy cleaner and de-stoner machine, rubber roller husker, gravity paddy separator, inhale-air emery roller rice mill, rice grader, and elevator.
Learn More -

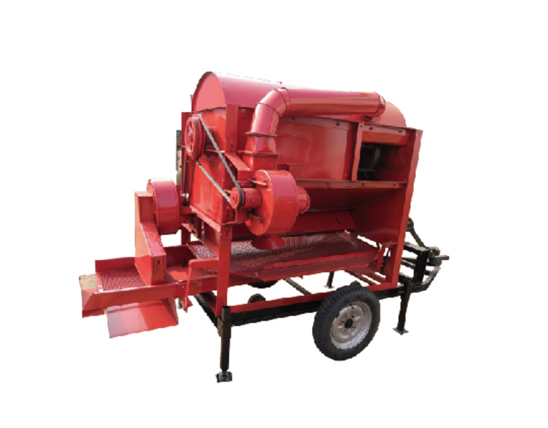

Chalian Geain Thresher
The 5TD series of threshers is mainly for rice, wheat, soybeans, and similar operations. The models are 5TD-50, 5TD-70, 5TD-100, 5TD-125.
Learn More -
Chalion 70HP/51.5KW Wheeled Tractor
QB series 70HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Learn More
