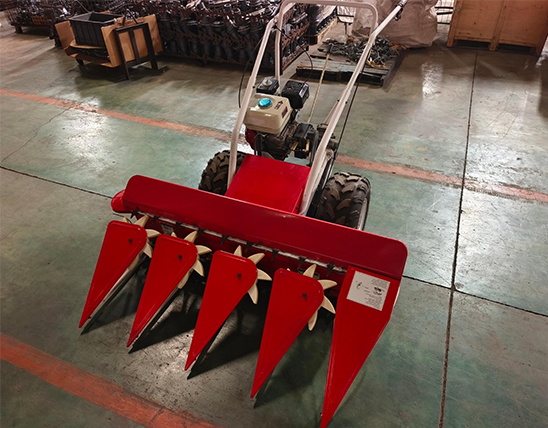

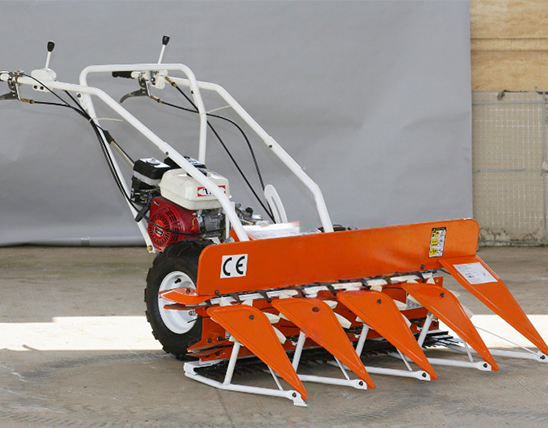

4G120AB Self-Propelled Rich & Wheat Reaper
It is used to harvest individual plants such as rice, wheat, sesame, soybean, and forage grass, and is widely used in plains, hills, slopes, narrow fields and other plots.
ProductsDescription
1. Usage: harvesting rice, wheat, sesame, soybean, forage, and other individual plant, widely used in the plains, hills, slopes, narrow fields, and other plots.
2. Features: small, hand-held, self-propelled.
3. Advantages: small size, light weight, low fuel consumption and flexible maneuverability, easy operation and effort, and low cut stubble.
4. Matching power: diesel engine or gasoline engine.
Products Parameters
| Main performance and technical specifications | |||
|---|---|---|---|
| Item | Parameter | ||
| Model | 4G120AB | ||
| Type | Self-propelled Rice & Wheat Reaper | ||
| Working Capacity (Ha/Hour) | 0.3 to 0. 5 Approx | ||
| Fuel Consumption (Litter/Hour) | 1.0-1.5 Gasoline | ||
| Crop | Rice &Wheat | ||
| Harvesting Loss (%) | 1.0-1.2 | ||
| Harvesting Field | Both Dry and Wet | ||
| Placement Angle | 90 ± 20 Degree | ||
| Transmission | Belt / Gear Type | ||
| Reaping | Reaping Width (mm) | 1200 | |
| Reaping Height (mm) | ≥50 | ||
| Reaping Device (mm) | Reciprocating Blade Bar | ||
| Engine | Type | Single, Cylinder, 4-stroke | |
| Model | JF270 | ||
| Power (Hp) | 4.5 to 6.0 | ||
| Rpm | Max 3600 | ||
| Fuel | Gasoline | ||
| Travel Speed (mm/min.) | Forward | 2.3-30 | |
| Reverse | 2.5-30 | ||
| Wheel (cm) | Tire wheel | Lug Tire Wheel 45 x 23 | |
| Operation & Control | Main Clutch: Dog Clutch | ||
| Harvesting Clutch | |||
| Height Adjustment of Handle | |||
| Delivery | Upper Delivery Devices | Revolving Chain With Lug Plates | |
| Lower Delivery Device | Revolving Chain | ||
| Crop Plant Release | Right Side (viewed from rear of the machine) | ||
| Dimension (cm) | 200-205* 135-138*110-114 | ||
| Weight (kg) | 180-185 | ||
| color | Yellow/Blue/Red | ||
-
